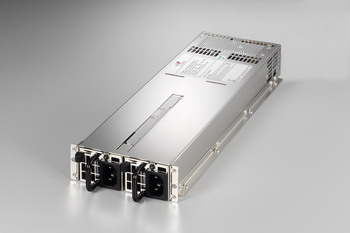

M1H2-5AD0V0H(1400W)

製品種別 電源 (Zippy)
電源の種類 N+1 Redundant
製品説明

製品仕様

wattage 1400W
solution Server ,Workstation ,Storage System
dimension_mm 425x106x41.3
dimension_inch 16.73x4.17x1.63
input_spec VOLTAGE： 90～264VAC FULL RANGEFREQUENCY： 47～63HZINPUT CURRENT：15A（RMS）FOR 115VAC / 10A（RMS）FOR 230VACINRUSH CURRENT：15A MAX. FOR 115 VAC PER MODULE / 30A MAX. FOR 230 VAC PER MODULEPOWER FACTOR CORRECTION: PFC can reach the target of 95% @110V,full load, following the standard Of EN 61000-3-2
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V036±5%±1%50mV+3.3V031±5%±1% 50mV +12V2116±5%±1%120mV-12V00.5±5%±1%120mV+5VSB0.13±5%±1%50mV
*POWER MODULE TOTAL OUTPUT POWER NOT EXCEED 1400W. *Max Power： 1000W at ACin90-264V 1200W at ACin115-264V 1400W at ACin180-264V

features * TEMPERATURE RANGE：OPERATING 0℃～50℃，STORAGE -20℃～80℃
* EFFICIENCY：TYPICAL 83% AT 115V FULL LOAD; TYPICAL 86% AT 230V FOLL LOAD
* OVER POWER PROTECTION
* OVER VOLTAGE PROTECTION
* OVER CURRENT PROTECTION
* SHORT CIRCUIT PROTECTION
* SAFETY：TO MEET UL, CUL, TUV, CCC


* THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/M1H2MA00.pdf
