製品情報

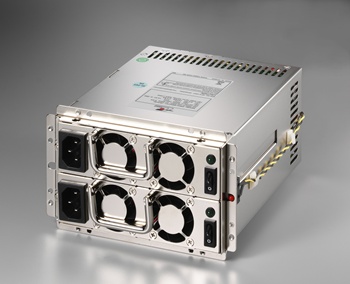

MRW-5450V4V(450W)

製品種別 電源 (Zippy)
電源の種類 Mini Redundant
製品説明

製品仕様

wattage 450W
solution Server ,Workstation ,Storage System
dimension_mm 185x150x86
dimension_inch 7.28x5.91x3.39
input_spec VOLTAGE: 90 ~ 264 VAC FULL RANGE. FREQUENCY: 47 ~ 63 Hz. STEADY-STATE CURRENT: 7/3A AT ANY LOW/HIGH RANGE INPUT VOLTAGE INRUSH CURRENT: 25A MAX. FOR 110 VAC , 50A MAX. FOR 220 VAC (AT 25 DEGREE C AMBIENT COLD START) PFC: UP TO THE TARGET OF 95% @110V, FULL LOAD
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V125±250mV±1%50mV+12V137±600mV±1% 120mV -12V00.8±600mV±1%120mV+3.3V125±165mV±1%50mV+5VSB0.13.5±250mV±1%50mV


features * TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃; STORAGE TEMPERATURE: -20℃ – 80℃
* HOLD UP TIME: 16mS MINIMUM AT NOMINAL INPUT VOLTAGE
* EFFICIENCY: TYPICAL >80% AT 115V, 25%~100% MAX LOAD
* LEAKAGE CURRENT: 3.5 mA. MAX. AT NOMINAL VOLTAGE 250VAC
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
* OVER POWER PROTECTION: 110%~160%
* OVER VOLTAGE PROTECTION: +3.3V→3.6~4.3V, +5V→5.5~6.5V, +12V→13.2~15.6V
* OVER CURRENT PROTECTION: +3.3V→27.5~37.5A, +5V→ 27.5~37.5A, +12V→45.1~65.6A
* SHORT CIRCUIT PROTECTION: +12V, -12V, +5VSB
* SAFETY: TO MEET UL, TUV, CB, CCC, RFI/EMI STANDARDS
* EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
* REMOTE ON/OFF CONTROL
* I2C FEATURES (OPTIONAL)


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/MRWVMA00.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/MRW-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/MRW-V%20TUV.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/MRW-5450V4V%20FCC.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/MRW-5450V4V(RoHS).pdf MTBF(RoHS)(50℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/MRW-5450V4V(RoHS)(50%e2%84%83).pdf MTBF(RoHS)(50℃)(NO FAN):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/MRW-5450V4V(RoHS)(50%e2%84%83)(NO%20FAN).pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/MRW-5450V4V%20(+Radiation).pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/MRW-5450V4V%20(Radiation).pdf
