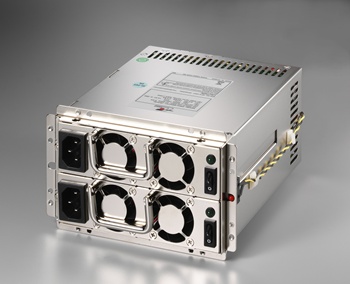

MRW-5600V4V(600W)
製品種別 | 電源 (Zippy) |
---|---|
電源の種類 | Mini Redundant |
製品説明 |
製品仕様
wattage | 600W |
---|---|
solution | Server ,Workstation ,Storage System |
dimension_mm | 185x150x86 |
dimension_inch | 7.28x5.91x3.39 |
input_spec | VOLTAGE: 90 ~ 264 VAC FULL RANGE. FREQUENCY: 47 ~ 63 Hz. STEADY-STATE CURRENT: 9/4A AT ANY LOW/HIGH RANGE INPUT VOLTAGE INRUSH CURRENT: 25A MAX. FOR 110 VAC , 50A MAX. FOR 220 VAC (AT 25 DEGREE C AMBIENT COLD START) PFC: UP TO THE TARGET OF 95% @110V, FULL LOAD |
dc_output |
|
features | * TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃; STORAGE TEMPERATURE: -20℃ – 80℃ * HOLD UP TIME: 16mS MINIMUM AT NOMINAL INPUT VOLTAGE * EFFICIENCY: TYPICAL >80% AT 115V, 25%~100% MAX LOAD * LEAKAGE CURRENT: 3.5 mA. MAX. AT NOMINAL VOLTAGE 250VAC * POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms * OVER POWER PROTECTION: 110%~160% * OVER VOLTAGE PROTECTION: +3.3V→3.6~4.3V, +5V→5.5~6.5V, +12V→13.2~15.6V * OVER CURRENT PROTECTION: +3.3V→27.5~40A, +5V→ 27.5~40A * SHORT CIRCUIT PROTECTION: +12V, -12V, +5VSB * SAFETY: TO MEET UL, TUV, CB, CCC, RFI/EMI STANDARDS * EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B * REMOTE ON/OFF CONTROL * I2C FEATURES (OPTIONAL) *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/MRW-5600V4V(RoHS).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/MRW-5600V4V%20FCC.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/MRW-5600V4V%20(+Radiation).pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/MRW-V%20CCC.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/MRW-V%20CB.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/MRW-5600V4V%20(Radiation).pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/MRW-V%20TUV.pdf |
