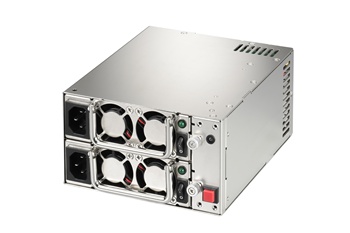

MRT-5320G0V(320W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Mini Redundant |
| 製品説明 |
製品仕様
| wattage | 320W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 185x150x86 |
| dimension_inch | 7.28x5.91x3.39 |
| input_spec | VOLTAGE: 90 ~ 264 VAC FULL RANGE FREQUENCY : 47 ~ 63 Hz INPUT CURRENT: 5/3A @ 115 / 230 VAC INRUSH CURRENT: 25/50 AMPS @115/230 VAC (AT 25 DEGREES AMBIENT COLD START FOR EACH POWER UNIT) POWER FACTOR CORRECTION: PFC CAN REACH THE TARGET OF 95% @ 115V, FULL LOAD, FOLLOWING THE STANDARD OF IEC 1000-3-2 |
| dc_output |
* TOTAL POWER: 320W (MAX) |
| features | * TEMPERATURE RANGE : OPERATING 0℃ ~ 50℃, STORAGE –20℃ ~ 80℃ * HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & 90 VAC INPUT VOLTAGE * EFFICIENCY: THE MAXIMUM POWER SUPPLY SYSTEM EFFICIENCY SHALL BE 87.8%, MEASURED AT NOMINAL INPUT VOLTAGE 230V AND FULL LOADING. * POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms * OUTPUT PROTECTION: OPP / OVP / OCP / SCP * FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL * HOT-SWAPPABLE / HOT-PLUGGABLE REDUNDANCY FUNCTION * BALANCE LOAD SHARING DESIGN * REMOTE ON/OFF CONTROL * LEAKAGE CURRENT: 3.5mA. RMS. MEASUREMENT WILL BE MADE AT 240VAC AND 60HZ * ISOLATION: BUILT-IN IN THE POWER MODULE * THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/MRTGMA00.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/MRT-5320G0V%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/MRT-5320G0V%20FCC.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/MRT-G%20&%20MRT-5XXXG0V%20CB.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/MRT-5320G0V(RoHS).pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/MRT-G%20TUVpdf.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/MRT-5320G0V%20CCC.pdf |
