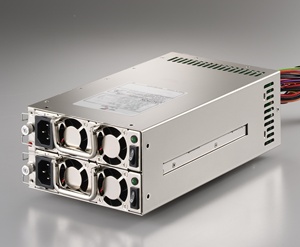

MRS-6500P(500W)

製品種別 電源 (Zippy)
電源の種類 Mini Redundant
製品説明

製品仕様

wattage 500W
solution Server ,Workstation ,Storage System ,IPC
dimension_mm 260x150x84
dimension_inch 10.24x5.91x3.31
input_spec FREQUENCY： 50～60Hz +/- 3Hz INPUT CURRENT：4.5A（RMS）FOR 230VAC/9A（RMS）FOR 115VAC INRUSH CURRENT：65A MAX. FOR 115 VAC PER MODULE 125A MAX. FOR 230 VAC PER MODULE
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V250± 5%± 1%50mV+12V225± 5%± 1% 120mV -5V01±10%± 1%100mV-12V01±10%± 1%120mV+3.3V128± 5%± 1%50mV+5VSB02± 5%± 1%50mV
REMARK: 1. +5V AND +3.3V TOTAL MAX: 60A
2. +5V, +3.3V AND +12V TOTAL MAX: 485W

features * TEMPERATURE RANGE：OPERATING 0℃～50℃，STORAGE -20℃～80℃
* HOLD UP TIME：16mS MIN. AT FULL LOAD & 90 VAC INPUT VOLTAGE
* DIELECTRIC WITHSTAND：INPUT/OUTPUT 1500 VAC FOR 1 minute INPUT TO FRAME GROUND 1500 VAC FOR 1 minute
* EFFICIENCY：65% TYPICAL，AT FULL LOAD
* POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1mS
* OVER POWER PROTECTION：110～150% MAX
* OVER VOLTAGE PROTECTION：+5V→ 5.7V～6.5V，+3.3V→ 3.9V～4.5V ，+12V→ 13.3V～14.5V, 5VSB→ 5.7V～6.5V
* OVER CURRENT PROTECTION：110～150% MAX
* SAFETY：UL-1950-1 , CSA-C22.2 NO.60950-1-03 , TUV EN-60950-1, CB IEC 60950-1
* REMOTE ON / OFF CONTROL
* FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL,I2C

* THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf MTBF:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/MRS-6500P.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/MRS-6500P%20FCC.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/MRS%20TUV.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/MRS0MA00.pdf
