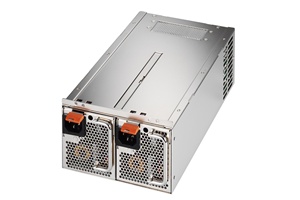

MRH2-5AD0V0H(1400W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Mini Redundant |
| 製品説明 |
製品仕様
| wattage | 1400W |
|---|---|
| solution | Server ,Workstation ,Storage System |
| dimension_mm | 280x150x86 |
| dimension_inch | 11.02x5.91x3.39 |
| input_spec | VOLTAGE: 90 ~ 264 VAC FULL RANGE. FREQUENCY: 47 ~ 63 Hz. STEADY-STATE CURRENT: 15/10A AT ANY LOW/HIGH RANGE INPUT VOLTAGE INRUSH CURRENT: 15A MAX. FOR 110 VAC , 30A MAX. FOR 220 VAC (AT 25 DEGREE C AMBIENT COLD START) PFC: UP TO THE TARGET OF 95% @110V, FULL LOAD |
| dc_output |
1.TOTAL MAX OUTPUT OF +5V AND +3.3V NOT EXCEED 210W 2.POWER MODULE TOTAL OUTPUT POWER NOT EXCEED 1400W FOR 180~264VAC 3.POWER MODULE TOTAL OUTPUT POWER NOT EXCEED 1200W FOR 103~132VAC |
| features | * TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃; STORAGE TEMPERATURE: -20℃ – 80℃ * HOLD UP TIME: 16mS MINIMUM AT NOMINAL INPUT VOLTAGE * EFFICIENCY: TYPICAL 82%(+/-2%) AT 115V, 25%~100% MAX LOAD * LEAKAGE CURRENT: 3.5 mA. MAX. AT NOMINAL VOLTAGE 250VAC * POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms * OVER POWER PROTECTION: 105%~150% * OVER VOLTAGE PROTECTION: +3.3V→3.7~4.1V, +5V→5.7~6.5V, +12V→12.8~13.9V * OVER CURRENT PROTECTION * SHORT CIRCUIT PROTECTION * SAFETY: TO MEET UL, TUV, CB, CCC, RFI/EMI STANDARDS * EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B * REMOTE ON/OFF CONTROL * I2C FEATURES (OPTIONAL) *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/MRH2MA00.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/MRH2-5AD0V0H%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/MRH2-5AD0V0H%20FCC.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/MRH2-5AD0V0H(RoHS).pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/MRH-V%20&%20MRH2-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/MRH-V%20and%20MRH2-V%20TUV.pdf |
