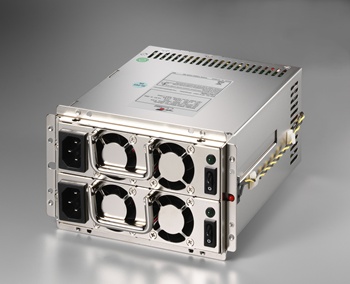

MRW-5600G4V(600W)

製品種別 電源 (Zippy)
電源の種類 Mini Redundant
製品説明

製品仕様

wattage 600W
solution Server ,Workstation ,Storage System
dimension_mm 185x150x86
dimension_inch 7.28x5.91x3.39
input_spec VOLTAGE: 90 ~ 264 VAC FULL RANGE. FREQUENCY: 47 ~ 63 Hz. STEADY-STATE CURRENT: 9/4A AT ANY LOW/HIGH RANGE INPUT VOLTAGE INRUSH CURRENT: 25A MAX. FOR 110 VAC , 50A MAX. FOR 220 VAC (AT 25 DEGREE C AMBIENT COLD START) PFC: UP TO THE TARGET OF 95% @110V, FULL LOAD
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V125±250mV±1%50mV+12V149±600mV±1% 120mV -12V00.8±600mV±1%120mV+3.3V125±165mV±1%50mV+5VSB0.13.5±250mV±1%50mV
1. POWER MODULE TOTAL OUTPUT POWER OF +5V AND +3.3V NOT EXCEED 170W. 2. TOTAL OUTPUT POWER NOT EXCEED 600W.

features * TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃; STORAGE TEMPERATURE: -20℃ – 80℃
* HOLD UP TIME: 16mS MINIMUM AT NOMINAL INPUT VOLTAGE
* EFFICIENCY: TYPICAL >82% AT 115V, 20%~100% MAX LOAD
* LEAKAGE CURRENT: 3.5 mA. MAX. AT NOMINAL VOLTAGE 250VAC
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
* OVER POWER PROTECTION: 110%~160%
* OVER VOLTAGE PROTECTION: +3.3V→3.6~4.3V, +5V→5.5~6.5V, +12V→13.2~15.6V
* OVER CURRENT PROTECTION: +3.3V→27.5~40A, +5V→ 27.5~40A
* SHORT CIRCUIT PROTECTION: +12V, -12V, +5VSB
* SAFETY: TO MEET UL, TUV, CB, CCC, RFI/EMI STANDARDS
* EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
* REMOTE ON/OFF CONTROL
* I2C FEATURES (OPTIONAL)


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/MRW-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/MRW-V%20TUV.pdf
