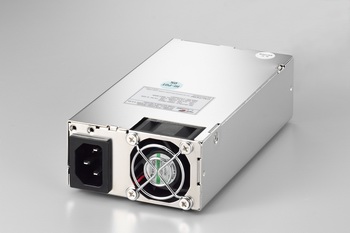

P1S-5220V(220W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Mini 1U Single |
| 製品説明 |
製品仕様
| wattage | 220W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 150x81.5x40.3 |
| dimension_inch | 5.9x3.21x1.59 |
| input_spec | INPUT CHARACTERISTICS：VOLTAGE：90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：3.5A (RMS) FOR 115 VAC / 1.5A (RMS) FOR 230 VAC INRUSH CURRENT：70A MAX. FOR 115 VAC / 140A MAX. FOR 230 VAC POWER FACTOR CORRECTION: PFC CAN REACH THE TARGET OF 95% AT 115/230VAC, FULL LOAD |
| dc_output |
* TOTAL POWER: 220W |
| features | ‧TEMPERATURE RANGE：OPERATING 0℃～40℃, STORAGE –20℃~80℃ ‧HOLD UP TIME：16mS MINIMUM AT FULL LOAD & NOMINAL INPUT VOLTAGE ‧EFFICIENCY：78~82% TYPICAL AT 115V, FULL LOAD ‧POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1mS ‧OVER POWER PROTECTION ‧OVER VOLTAGE PROTECTION ‧OVER CURRENT PROTECTION ‧SHORT CIRCUIT PROTECTION ‧EMI NOISE FILTER: FCC CLASS A, CISPR22(EN55022) CLASS A ‧SAFETY: TO MEET UL, CUL, TUV, CCC ‧COOLING: 40mm DC FAN *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/P1S-5220V%20FCC.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/P1S-5220V(RoHS).pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/P1SVMA00.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/P1S-V%20&%20P1E-V%20CB%20.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/P1S-V%20&%20P1E-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/P1S-V,%20P1E-V%20CCC.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/P1S-5220V%20FCC%20B.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/P1S-5220V%20(Radiation).pdf |
