製品情報

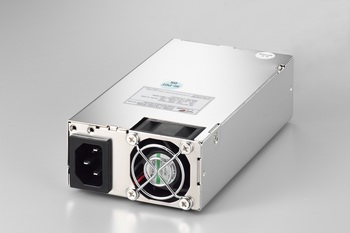

P1S-6300V(300W)

製品種別 電源 (Zippy)
電源の種類 Mini 1U Single
製品説明

製品仕様

wattage 300W
solution Server ,Workstation ,Storage System ,IPC
dimension_mm 150x81.5x40.3
dimension_inch 5.9x3.21x1.59
input_spec INPUT CHARACTERISTICS:VOLTAGE:90~264VAC FULL RANGE FREQUENCY: 47~63HZ INPUT CURRENT:4.5A (RMS) FOR 115 VAC / 2.0A (RMS) FOR 230 VAC INRUSH CURRENT:70A MAX. FOR 115 VAC / 140A MAX. FOR 230 VAC POWER FACTOR CORRECTION: PFC CAN REACH THE TARGET OF 95% AT 115/230VAC, FULL LOAD
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V118±5%50mV+12V108±5% 120mV +12V2216±5%120mV-12V00.3±10%120mV+3.3V0.517±5%50mV+5VSB0.12.5±5%50mV
* +5V AND +3.3V TOTAL OUTPUT MAX: 120W
* TOTAL POWER: 300W


features ‧TEMPERATURE RANGE:OPERATING 0℃~50℃, STORAGE –20℃~80℃
‧HOLD UP TIME:16mS MINIMUM AT FULL LOAD & NOMINAL INPUT VOLTAGE
‧EFFICIENCY:78~82% TYPICAL AT 115V, FULL LOAD
‧POWER GOOD SIGNAL:ON DELAY 100mS TO 500mS,OFF DELAY 1mS
‧OVER POWER PROTECTION
‧OVER VOLTAGE PROTECTION
‧OVER CURRENT PROTECTION
‧SHORT CIRCUIT PROTECTION
‧EMI NOISE FILTER: FCC CLASS A, CISPR22(EN55022) CLASS A
‧SAFETY: TO MEET UL, CUL, TUV, CCC
‧COOLING: 40mm DC FAN


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/P1S-6300V(RoHS).pdf MTBF(ROHS)(W/F.C):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/P1S-6300V(RoHS)(W.FC).pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/P1SVMA00.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/P1S-V%20&%20P1E-V%20CB%20.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/P1S-V%20&%20P1E-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/P1S-V,%20P1E-V%20CCC.pdf FCC(Class B):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/P1S-6300V%20FCC-B.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/P1S-6300V%20FCC.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/P1S-6300V%20(Radiation).pdf MTBF(RoHS)(50℃).:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/P1S-6300V(RoHS)(50%e2%84%83).pdf
