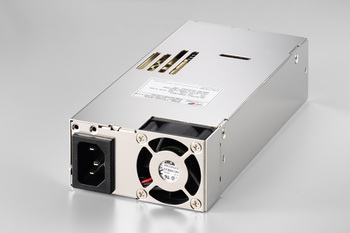

P1P-5400V(400W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Mini 1U Single |
| 製品説明 |
製品仕様
| wattage | 400W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 170x81.5x40.3 |
| dimension_inch | 6.69x3.21x1.59 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：6A (RMS) FOR 115 VAC/ 3A (RMS) FOR 230 VAC INRUSH CURRENT：30A MAX. FOR 115 VAC/ 60A MAX. FOR 230 VAC PFC CAN REACH THE TARGET OF 95% @230VAC, FULL LOAD |
| dc_output |
* TOTAL POWER: 400W |
| features | * TEMPERATURE RANGE：OPERATING 0℃～40℃, OPERATING -20℃~80℃ * HOLD UP TIME：16mS MINIMUM AT FULL LOAD & NOMINAL INPUT VOLTAGE * DIELECTRIC WITHSTAND：INPUT/OUTPUT 1800 VAC FOR 1 SECOND INPUT TO FRAME GROUND 1800 VAC FOR 1 SECOND * EFFICIENCY：TYPICAL 80-84% (5401V: 78~83%) AT 25℃ 115V FULL LOAD * POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1mS * OVER POWER PROTECTION：110～160% MAX * OVER VOLTAGE PROTECTION：+5V→5.6V～6.5V, +3.3V→3.6V～4.3V, +12V→13.2V～15V * OVER CURRENT PROTECTION: +3.3V→17.6~25.6A, +5V→19.8~28.8A, +12V→35.2~51.2A * SHORT CIRCUIT PROTECTION：+5V +12V +3.3V, -12V, +5VSB * RESTART AFTER PROTECTION: OPP/OVP * EMI NOISE FILTER : FCC CLASS A, CISPR22 CLASS A * SAFETY: TO MEET UL, CUL, TUV, CCC, RFI/EMI STANDARDS * REMOTE ON/OFF CONTROL THE POWER SUPPLY SHALL ACCEPT A LOGIC OPEN COLLECTOR LEVEL WHICH WILL DISABLE/ENABLE ALL THE OUTPUT VOLTAGE (EXCLUDE +5V STAND BY). AS LOGIC LEVEL IS LOW，OUTPUTS VOLTAGE WERE ENABLE， AS LOGIC LEVEL IS HIGH，OUTPUTS VOLTAGE WERE DISABLE. * 3.3V & 5V REMOTE SENSING * COOLING: ONE 40mm DC FANS * MEET IEC-1000-3-2 CLASS D *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/P1PVMA00.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/P1P-5400V(RoHS).pdf MTBF(RoHS)(50℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/P1P-5400V(RoHS)(50%e2%84%83).pdf MTBF(RoHS)(35℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/P1P-5400V(RoHS)(35%e2%84%83).pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/P1P-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/P1P-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/P1P-V%20CCC.pdf |
