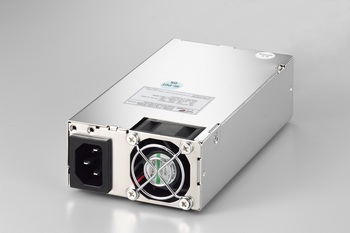

P1S-5151V(151W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Mini 1U Single |
| 製品説明 |
製品仕様
| wattage | 151W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC ,Blade server |
| dimension_mm | 150x81.5x40.3 |
| dimension_inch | 5.91x3.21x1.59 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：2A (RMS) FOR 115 VAC / 1A (RMS) FOR 230 VAC INRUSH CURRENT：35A MAX. FOR 115 VAC / 70A MAX. FOR 230 VAC |
| dc_output |
* +5V AND +3.3V TOTAL OUTPUT MAX: 70W * +5V, +3.3V, +12V, -12V TOTAL OUTPUT MAX: 144W * TOTAL POWER: 151W |
| features | * TEMPERATURE RANGE：OPERATING 0℃～50℃ * HOLD UP TIME：16mS MINIMUM AT 115V FULL LOAD * EFFICIENCY：TYPICAL 80%(+/-2%) AT 230V * POWER GOOD SIGNAL：ON DELAY 100mS TO 550mS，OFF DELAY 1mS * OVER POWER PROTECTION：110～170% MAX * OVER VOLTAGE PROTECTION: +3.3V→3.6~4.3V, +5V→5.6~6.5V, +12V→13.2~15V * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, AUTO-RECOVERED: +5VSB * SAFETY : TO MEET UL, CUL, TUV, CCC * REMOTE ON/OFF CONTROL THE POWER SUPPLY SHALL ACCEPT A LOGIC OPEN COLLECTOR LEVEL WHICH WILL DISABLE/ENABLE ALL THE OUTPUT VOLTAGE (EXCLUDE +5V STAND BY). AS LOGIC LEVEL IS LOW，OUTPUTS VOLTAGE WERE ENABLE， AS LOGIC LEVEL IS HIGH，OUTPUTS VOLTAGE WERE DISABLE. * MEET IEC-1000-3-2 CLASS D *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/P1S-5xxxV,P1S-3xxxV-R%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/P1S-5xxxV,P1S-3xxxV-R%20TUV%20EN60950-1-2006.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/P1S-5151V(RoHS).pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/P1S-5xxxV,P1S-3xxxV-R%20CCC.pdf CE:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/P1S-5151V%20(+Radiation).pdf |
