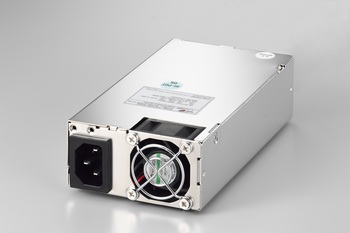

P1E-6300V(300W)

製品種別 電源 (Zippy)
電源の種類 Mini 1U Single
製品説明

製品仕様

wattage 300W
solution Server ,Workstation ,Storage System
dimension_mm 190x81.5x40.3
dimension_inch 7.48x3.21x1.59
input_spec VOLTAGE: 90 ~ 264 VAC FULL RANGE FREQUENCY : 47 ~ 63 HZ INPUT CURRENT: 4.5 A ( RMS ) FOR 115VAC/2.0 A ( RMS ) FOR 230VAC INRUSH CURRENT: 60A MAX. FOR 115 VAC; 100A MAX. FOR 230 VAC
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V112±5%±5%±50mV+12V216±5%±5% ±120mV -12V00.3±10%±1%±120mV+3.3V0.510±5%±5%±50mV+5VSB0.12±5%±5%±50mV+48V0.13.2±10%±1%±480mV
* +5V AND +3.3V TOTAL OUTPUT MAX: 90W
* +5V, -12V, +12V, +3.3V, +5VSB TOTAL OUTPUT MAX: 200W
* +48V OUTPUT MAX: 153.6W

features * TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃, STORAGE –20℃ ~ 80℃
* HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
* EFFICIENCY: 80-82% TYPICAL AT 115V, FULL LOAD
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
* OVER POWER PROTECTION: 110~160%
* OVER VOLTAGE PROTECTION : +3.3V→3.6~4.3V, +5V→5.6~6.5V, +12V→13.2~15V
* OVER CURRENT PROTECTION: +3.3V→11~16A, +5V→13.2~19.2A, +12V→ >16A, * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +48V, +5VSB
* EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
* SAFETY: UL 60950, CSA 60950, TÜV EN-60950, CCC
* RFI/EMI STANDARDS: FCC PART 15. CLASS B / CISPR 22(EN 55022) CLASS B.
* REMOTE SENSING DESIGN
* COOLING: ONE 40mm DC FANS


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
