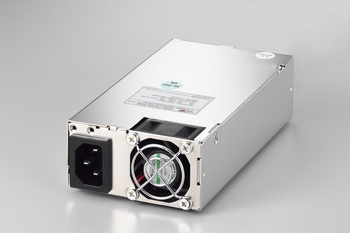

P1S-5221V(220W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Mini 1U Single |
| 製品説明 |
製品仕様
| wattage | 220W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 150x81.5x40.3 |
| dimension_inch | 5.9x3.21x1.59 |
| input_spec | INPUT CHARACTERISTICS：VOLTAGE：90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：3A (RMS) FOR 115 VAC / 1.5A (RMS) FOR 230 VAC INRUSH CURRENT：35A MAX. FOR 115 VAC / 70A MAX. FOR 230 VAC POWER FACTOR CORRECTION: PFC CAN REACH THE TARGET OF 95% AT 115/230VAC, FULL LOAD |
| dc_output |
* +5V AND +3.3V TOTAL OUTPUT MAX: 70W * +5V, +3.3V, +12V, -12V TOTAL OUTPUT MAX: 207.5W * TOTAL POWER: 220W |
| features | ‧TEMPERATURE RANGE：OPERATING 0℃～50℃, STORAGE –20℃~80℃ ‧HOLD UP TIME：16mS MINIMUM AT FULL LOAD & NOMINAL INPUT VOLTAGE ‧EFFICIENCY：Power supply efficiency typical 80%(+/-2%) at 230Vin and Load condition: 12V/12.26A;5V/7.33A;3.3V/7.33A;-12V/0.26A;5Vsb/1.77A ‧POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1mS ‧OVER POWER PROTECTION: 110~160% ‧OVER VOLTAGE PROTECTION: +3.3V→3.6~4.3V, +5V→5.6~6.5V, +12V→13.2~15V ‧SHORT CIRCUIT PROTECTION: +12V, -12V, +5V, +3.3V, +5VSB ‧EMI NOISE FILTER: FCC CLASS A, CISPR22(EN55022) CLASS A ‧SAFETY: TO MEET UL, CUL, TUV, CCC *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/P1S-5xxxV,P1S-3xxxV-R%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/P1S-5xxxV,P1S-3xxxV-R%20TUV%20EN60950-1-2006.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/P1S-5xxxV,P1S-3xxxV-R%20CCC.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/P1S-5221V%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/P1S-5221V%20FCC.pdf |
