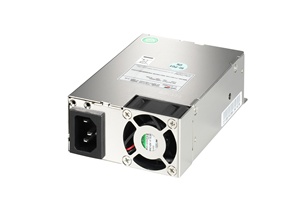

P1S-1131V48(130W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Mini 1U Single |
| 製品説明 |
製品仕様
| wattage | 130W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC ,Blade server |
| dimension_mm | 120x81.5x40.3 |
| dimension_inch | 4.72x3.21x1.59 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT: 2 / 1 AMPS MAXUMUM AT ANY LOW/HIGH RANGE INPUT VOLTAGE INRUSH CURRENT: 35/70 AMPS @115/230VAC (HIGH-FREQUENCY PEAK AMPLITUDES LASTING LESS THAN 50uS. SHALL BE IGNORED) |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～50℃, STORAGE -20℃~80℃ * HOLD UP TIME：+12V MUST BE MAINTAIN 17mS IN REGULATION LIMIT AT 115V INPUT VOLTAGE * EFFICIENCY：88% TYPICAL AT 230VAC FULL LOAD * LEAKAGE CURRENT: 3.5MA. MAX. AT NOMINAL VOLTAGE 250VAC * OVER POWER PROTECTION：110～150% MAX * OVER VOLTAGE PROTECTION: +48V→52~58V * OVER CURRENT PROTECTION: +48V→110~150% * SHORT CIRCUIT PROTECTION: +48V * SAFETY: MEET UL, TUV, CCC * REMOTE ON/OFF CONTROL *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
