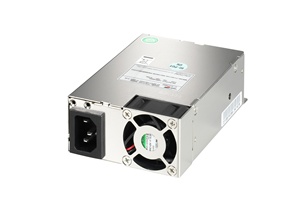

P1S-2120V(120W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Mini 1U Single |
| 製品説明 |
製品仕様
| wattage | 120W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC ,Blade server |
| dimension_mm | 120x81.5x40.3 |
| dimension_inch | 4.72x3.21x1.59 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：2A(RMS) FOR 115 VAC / 1A(RMS) FOR 230 VAC INRUSH CURRENT：35A MAX. FOR 115 VAC PER MODULE / 70A MAX. FOR 230 VAC PER MODULE |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～50℃, STORAGE -20℃~80℃ * HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT +12V MUST BE MAINTAIN 17MSEC IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE * EFFICIENCY：85% AT 230VAC, 50% MAX LOAD * LEAKAGE CURRENT: 3.5MA. MAX. AT NOMINAL VOLTAGE 250VAC * POWER GOOD SIGNAL：ON DELAY 100mS TO 550mS，OFF DELAY 1Ms * OVER POWER PROTECTION：105～150% MAX * OVER VOLTAGE PROTECTION: +12V→12.8~15V; +5V→5.7~7V * OVER CURRENT PROTECTION: +12V→110~150% * SHORT CIRCUIT PROTECTION: +12V * SAFETY: MEET UL, CUL, TUV, CCC *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/P1SVMA14.pdf |
