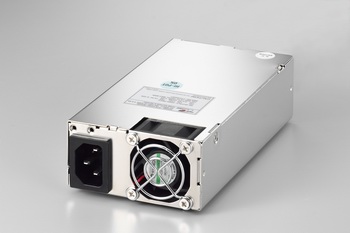

P1S-2500V48(500W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Mini 1U Single |
| 製品説明 |
製品仕様
| wattage | 500W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC ,Blade server |
| dimension_mm | 150x81.5x40.3 |
| dimension_inch | 5.91x3.21x1.59 |
| input_spec | VOLTAGE： 180～264VAC FREQUENCY： 47～63HZ INPUT CURRENT：6.5A (RMS) FOR 115 VAC / 3.5A (RMS) FOR 230 VAC INRUSH CURRENT：80A @230 VAC PER MODULE |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～40℃, STORAGE -20℃~80℃ * HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT 5V MUST BE MAINTAIN 16MSEC IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE * EFFICIENCY：87.8% AT 230VAC, FULL LOAD * LEAKAGE CURRENT: 3.5MA. MAX. AT NOMINAL VOLTAGE 240VAC * POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1Ms * OVER POWER PROTECTION：110～160% MAX * OVER VOLTAGE PROTECTION: +48V→52.8 ~ 62.4V * SHORT CIRCUIT PROTECTION: +48V, +5VSB * SAFETY: MEET UL, CUL, TUV, CCC * REMOTE ON/OFF CONTROL * WARNING METHOD: AUDIO ALARM(BUZZER SOUND, RESETABLE), FALUT LED, TTL *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/P1S-2500V48(RoHS).pdf |
