製品情報

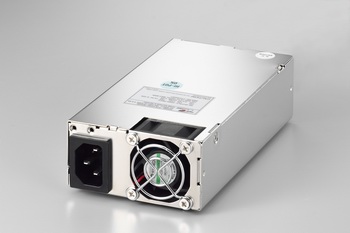

P1S-2300V19(300W)

製品種別 電源 (Zippy)
電源の種類 Mini 1U Single
製品説明

製品仕様

wattage 300W
solution Server ,Workstation ,Storage System ,IPC ,Blade server
dimension_mm 150x81.5x40.3
dimension_inch 5.91x3.21x1.59
input_spec VOLTAGE: 90~264VAC FULL RANGE FREQUENCY: 47~63HZ INPUT CURRENT:4.5 / 2 AMPS MAXIMUM AT ANY LOW/HIGH RANGE INPUT VOLTAGE. INRUSH CURRENT:6/80A AMPS @115/230 VAC (AT 25 DEGREES AMBIENT COLD START)
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+19V215.8±5%±1%120mV+5VSB0.12.5±5%±1% 50mV
* TOTAL OUTPUT MAX: 300W

features * TEMPERATURE RANGE:OPERATING 0℃~40℃, STORAGE -20℃~80℃
* HOLD UP TIME:WHEN POWER SHUTDOWN DC OUTPUT 19V MUST BE MAINTAIN 12MSEC IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE
* EFFICIENCY:>80% AT 115VAC, 40%~100% MAX LOAD
* LEAKAGE CURRENT: 3.5MA. MAX. AT NOMINAL VOLTAGE 250VAC
* POWER GOOD SIGNAL:ON DELAY 100mS TO 550mS,OFF DELAY 1Ms
* OVER POWER PROTECTION:110~160% MAX
* OVER VOLTAGE PROTECTION: +19V→21~25V
* SHORT CIRCUIT PROTECTION: +19V, +5VSB
* SAFETY: MEET UL, CUL, TUV, CCC
* WARNING METHOD: AUDIO ALARM(BUZZER SOUND, RESETABLE), FALUT LED, TTL


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/P1S-2300V19(RoHS).pdf
