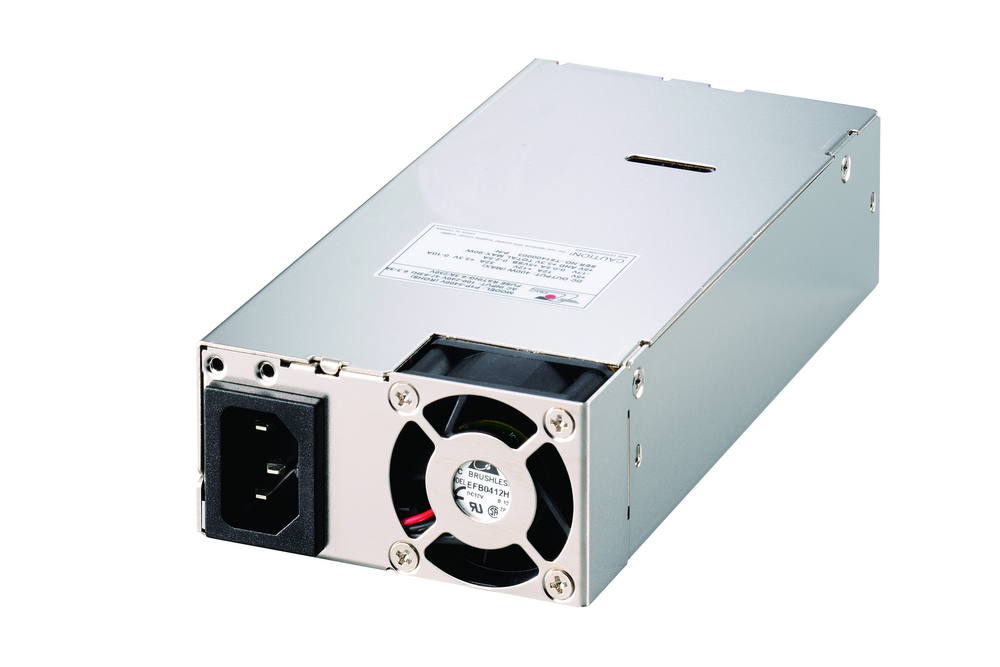

P1P-2600K(600W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Mini 1U Single |
| 製品説明 |
製品仕様
| wattage | 600W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 170x81.5x40.3 |
| dimension_inch | 6.69x3.21x1.59 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：8.5A (RMS) FOR 115 VAC / 4.5A (RMS) FOR 230 VAC INRUSH CURRENT：35A MAX. FOR 115 VAC / 80A MAX. FOR 230 VAC PFC: UP TO THE TARGET OF 95% @115/230VAC, FULL LOAD |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～50℃, OPERATING -20℃~80℃ * HOLD UP TIME：12mS MINIMUM AT 75% OF MAX. LOAD & NOMINAL INPUT VOLTAGE * EFFICIENCY：The maximum power supply system efficiency shall be 91%, measured at nominal input voltage 230V and full loading * POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1mS * OVER POWER PROTECTION：110～150% MAX * OVER VOLTAGE PROTECTION * OVER CURRENT PROTECTION * SHORT CIRCUIT PROTECTION * EMI NOISE FILTER : FCC CLASS A, CISPR22 CLASS A * SAFETY: TO MEET UL, CUL, TUV, CCC * RFI/EMI: FCC CLASS A, CISPR 22 CLASS A * REMOTE ON/OFF CONTROL * COOLING: ONE 40mm DC FANS *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
