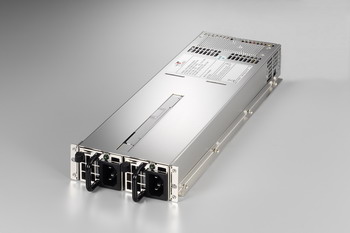

R1V2-5275V4H(275W)

製品種別 電源 (Zippy)
電源の種類 Micro Redundant
製品説明

製品仕様

wattage 275W
solution Server ,Workstation ,Storage System
dimension_mm 295x106x41.8
dimension_inch 11.61x4.17x1.65
input_spec VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：2A（RMS）FOR 230VAC 4A（RMS）FOR 115VAC INRUSH CURRENT：35A MAX. FOR 115 VAC PER MODULE 70A MAX. FOR 230 VAC PER MODULE
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V020±5%±1%50mV+12V0.122±5%±1% 120mV -12V00.3±5%±1%120mV+3.3V020±5%±1%50mV+5VSB0.12.5±5%±1%50mV
features * TEMPERATURE RANGE：OPERATING 0℃～50℃, STORAGE -20℃~80℃
* HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT 5V MUST BE MAINTAIN 16MSEC IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE
* EFFICIENCY：78%±2% TYPICAL，AT FULL LOAD 230VAC
* LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 250VAC
* POWER GOOD SIGNAL：ON DELAY 100mS TO 550mS，OFF DELAY 1Ms
* OVER POWER PROTECTION：110～170% MAX
* OVER VOLTAGE PROTECTION: +5V→5.6~6.5V, +3.3V→3.6~4.3V, +12V→13.2~15V
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB
* SAFETY: MEET UL60950, TUV EN-60950, CB IEC 60950
* WARNING METHOD: AUDIO ALARM (BUZZER SOUND, RESETABLE), FALUT LED, TTL


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/R1V2MA00.pdf Manual:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MANUAL/R1V%20SERIES%20MANUAL0901002.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/R1V-V%20&%20R1V2-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/R1V-V%20&%20R1V2-V%20TUV.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R1V2-5275V4H(RoHS).pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/R1V-V%20&%20R1V2-V%20CCC.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/R1V2-5275V4H%20FCC.pdf MTBF(RoHS)(45℃:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R1V2-5275V4H(RoHS)(45%e2%84%83).pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/R1V2MA03.pdf CE:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/R1V2-5275V4H%20(+Radiation).pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/BSMI/R1V-V%20&%20R1V2-V%20&%20R1U-V%20&%20R1U2-V%20BSMI.pdf MTBF(SR-332 Issue1):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R1V2-5275V4H%20MTBF%2030C(SR-332%20Issue%201).pdf
