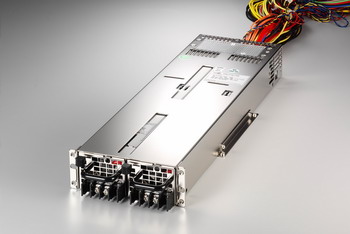

DM1S2-5401V4H(400W)

製品種別 電源 (Zippy)
電源の種類 Micro Redundant DC
製品説明

製品仕様

wattage 400W
solution Server ,Workstation ,Storage System ,IPC ,Communication ,Networking
dimension_mm 355x106x41.3
dimension_inch 13.98x4.17x1.63
input_spec VOLTAGE: -36 ~ -72VDC FREQUENCY: -48VDC STEADY-STATE CURRENT: -36 ~ -72VDC / 15~7 AMP (11 AMP AT -48VDC) INRUSH CURRENT:30 AMPS AT -48VDC (AT 25 DEGREES AMBIENT COLD START)
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V125±5%±1%50mV-12V00.8±10%±1% 120mV +12V233±5%±1%120mV+3.3V125±5%±1%50mV+5VSB0.13.5±5%±1%50mV


features * TEMPERATURE RANGE:OPERATING 0℃~40℃, STORAGE -20℃~80℃; OPERATING TEMPERATURE FROM 0℃ SHOULD START FROM DC -48V
* HOLD UP TIME:WHEN POWER SHUTDOWN DC OUTPUT 12V MUST BE MAINTAIN 1.6mS IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE
* DIELECTRIC WITHSTAND:INPUT/OUTPUT 1800 VAC FOR 1 SECOND INPUT TO FRAME GROUND 1800 VAC FOR 1 SECOND
* EFFICIENCY:>80% AT -48V,FULL LOAD
* HUMIDITY: OPERATING HUMIDITY: 20%~80%; NON-OPERATING HUMIDITY: 10%~90%
* POWER GOOD SIGNAL:ON DELAY 100mS TO 500mS
* OVER POWER PROTECTION:110~170% MAX
* OVER VOLTAGE PROTECTION: +5V→5.9~6.7V, +3.3V→3.9~4.3V, +12V→13~15.6V
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V; AUTO-RECOVERED: +5VSB
* OVER CURRENT PROTECTION: +3.3V→27.5~37.5A, +5V→27.5~37.5A, +12V→36.3~59.4A
* EMI NOISE FILTER : CISPR22 CLASS A
* SAFETY : TO MEET UL, TUV, CB
* REMOTE ON/OFF CONTROL
THE POWER SUPPLY SHALL ACCEPT A LOGIC OPEN COLLECTOR LEVEL WHICH WILL DISABLE/ENABLE ALL THE OUTPUT VOLTAGE (EXCLUDE +5V STAND BY).
AS LOGIC LEVEL IS LOW,OUTPUTS VOLTAGE WERE ENABLE, AS LOGIC LEVEL IS HIGH,OUTPUTS VOLTAGE WERE DISABLE.

*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/DM1S-V%20&%20%20DM1S2-V%20TUV.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/DM1S-V%20&%20%20DM1S2-V%20CB.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/DM1S-V%20&%20DM1S2-V%20CCC.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/DM1S2-5401V4H(RoHS).pdf
