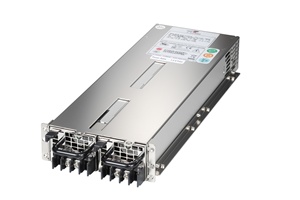

DR1V2-5250V4H(250W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Micro Redundant DC |
| 製品説明 |
製品仕様
| wattage | 250W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC ,Communication ,Networking |
| dimension_mm | 295x106x41.8 |
| dimension_inch | 11.61x4.17x1.65 |
| input_spec | VOLTAGE：-40 ~ -72VDC FREQUENCY： DC STEADY-STATE CURRENT: 10/5A MAXIMUN AT ANY LOW/HIGH RANGE INPUT VOLTAGE INRUSH CURRENT: 10A MAX. @-48VDC INPUT (AT 25DEGREES AMBIENT COLD START) START UP CURRENT: 13AMPS MAX. @ -48VDC INPUT |
| dc_output |
* POWER MODULE TOTAL OUTPUT POWER NOT EXCEED 250W |
| features | * TEMPERATURE RANGE：OPERATING 0℃～50℃, STOREAGE -20℃~80℃ * HOLD UP TIME：1mS MIN. * DIELECTRIC WITHSTAND：INPUT/OUTPUT 1500 VAC FOR 1 MINUTE INPUT TO FRAME GROUND 1500 VAC FOR 1 MINUTE * EFFICIENCY: POWER SUPPLY EFFICIENCY TYPICAL 78%(+/-2%) AT -48VDC, 12V/20A 5VSB/2A * OVER POWER PROTECTION: 120~160% * OVER VOLTAGE PROTECTION：+3.3V→3.6V～4.3V，+5V→5.6V～6.5V，+12V→13.2 V～15V * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V * REMOTE ON / OFF CONTROL * REMOTE SENSING DESIGN * BALANCE LOAD SHARING DESIGN * HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION * ISOLATION: BUILT-IN THE POWER MODULE * FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL * COOLING:40*28mm DC FAN (MODULE) * EMI NOISE FILTER: FCC CLASS A , CISPR 22 CLASS A * SAFETY：MEET UL, CUL, TUV, CCC *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/DR1V2MA00.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/DR1U2,DR1V2-5xxxV4H%20CB.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/DR1U2,DR1V2-V4H%20CCC.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/DR1V2-5250V4H%20FCC.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/DR1V2-5250V4H(RoHS).pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/DR1V2-V%20&%20DR1U2-V%20TUV.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/DR1V2-5250V4H%20(Radiation).pdf |
