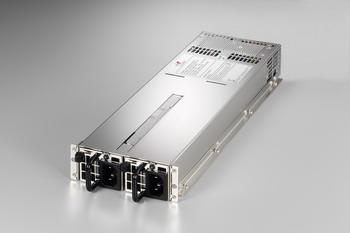

R1U2-5220V4H(220W)

製品種別 電源 (Zippy)
電源の種類 Micro Redundant
製品説明

製品仕様

wattage 220W
solution Server ,Workstation ,Storage System
dimension_mm 260x106x41.3
dimension_inch 10.24x4.17x1.63
input_spec VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：2A（RMS）FOR 230VAC 4A（RMS）FOR 115VAC INRUSH CURRENT：35A MAX. FOR 115 VAC PER MODULE 70A MAX. FOR 230 VAC PER MODULE
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V016±5%±1%50mV+12V0.717.5±5%±1% 120mV -12V00.3±10%±1%120mV+3.3V016±5%±1%50mV+5VSB0.12±5%±1%50mV
* +5V AND +3.3V TOTAL OUTPUT MAX: 120W

features * TEMPERATURE RANGE：OPERATING 0℃～50℃，STORAGE -20℃～80℃
* HOLD UP TIME：20mS MIN. AT FULL LOAD & 115 VAC INPUT VOLTAGE
* DIELECTRIC WITHSTAND：INPUT/OUTPUT 1500 VAC FOR 1 MINUTE
* EFFICIENCY：TYPICAL 78%(+/-2%) AT FULL LOAD 230VAC
* POWER GOOD SIGNAL：ON DELAY 100mS TO 600mS，OFF DELAY 1mS
* OVER POWER PROTECTION：110～170% MAX
* OVER VOLTAGE PROTECTION：+3.3V→3.6~4.3V, +5V→5.6~6.5V, +12V→13.2~15V
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V
* SAFETY：TO MEET UL, CUL, TUV, CCC
* FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL
* MEET IEC-1000-3-2 CLASS D (ACTIVE PFC)


* THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/R1V-V%20&%20R1V2-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/R1V-V%20&%20R1V2-V%20TUV.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/R1U2MA00.pdf CE:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/R1U2-5220V4H.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/R1U2-5220V4H%20FCC.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/R1U2-5220V4H%20&%20R1U2-5200V4H%20CCC.pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/BSMI/R1V-V%20&%20R1V2-V%20&%20R1U-V%20&%20R1U2-V%20BSMI.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R1U2-5220V4H(RoHS).pdf MTBF(SR-332 Issue2):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R1U2-5220V4H%20MTBF%20T25(SR-332%20Issue2).pdf MTBF(SR-332 Issue3):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R1U2-5220V4H%20MTBF%20T25(SR-332%20Issue3).pdf
