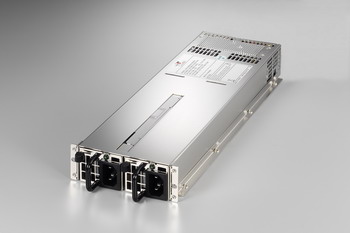

R1V2-2212V4H(212W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Micro Redundant |
| 製品説明 |
製品仕様
| wattage | 212W |
|---|---|
| solution | Server ,Workstation ,Storage System |
| dimension_mm | 310x106x41.8 |
| dimension_inch | 12.2x4.17x1.65 |
| input_spec | VOLTAGE： 100～240 VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：2A（RMS）FOR 230VAC / 4A（RMS）FOR 115VAC INRUSH CURRENT：35A MAX. FOR 115 VAC PER MODULE / 70A MAX. FOR 230 VAC PER MODULE |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～50℃, STORAGE -20℃~80℃ * HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT 5V MUST BE MAINTAIN 20MSEC IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE * EFFICIENCY：75%±2% TYPICAL，AT FULL LOAD 230VAC * LEAKAGE CURRENT: 3.5mA. MAX. AT NOMINAL VOLTAGE 250 VAC * OVER POWER PROTECTION：TRIP POINT TOTAL POWER MIN.250W, MAX. 350W (PER UNIT) * OVER VOLTAGE PROTECTION: +5.5VA. +5.5VB: 5.6~6.5V * SHORT CIRCUIT PROTECTION: +5.5VA, +5.5VB * SAFETY: MEET UL&CUL, TUV, CB IEC 60950, CCC * WARNING METHOD: AUDIO ALARM (BUZZER SOUND, RESETABLE), FALUT LED, TTL * THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R1V2-2212V4H(RoHS).pdf |
