製品情報

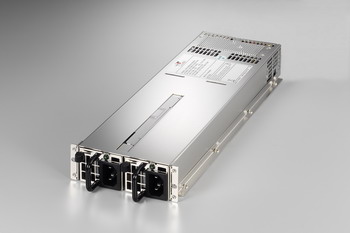

M1U2-2650V4H(650W)

製品種別 電源 (Zippy)
電源の種類 Micro Redundant
製品説明

製品仕様

wattage 650W
solution Server ,Workstation ,Storage System
dimension_mm 355x106x41.8
dimension_inch 13.98x4.17x1.65
input_spec VOLTAGE: 90~264VAC FULL RANGE FREQUENCY: 47~63HZ INPUT CURRENT:5A (RMS)FOR 230VAC 10A(RMS)FOR 115VAC INRUSH CURRENT:15A MAX. FOR 115 VAC PER MODULE 30A MAX. FOR 230 VAC PER MODULE
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+12V254±5%±1%120mV+5VSB0.13±5%±1% 50mV
* POWER MODULE TOTAL OUTPUT POWER NOT EXCEED 650W

features * TEMPERATURE RANGE:OPERATING 0℃~50℃,STORAGE -20℃~80℃
* HOLD UP TIME:11mS MIN. AT FULL LOAD & 90 VAC INPUT VOLTAGE
* DIELECTRIC WITHSTAND:INPUT/OUTPUT 1500 VAC FOR 1 MINUTE
* INPUT TO FRAME GROUND 1500 VAC FOR 1 minute
* EFFICIENCY:TYPICAL 85% AT 115V, 88% AT 230V, FULL LOAD
* POWER GOOD SIGNAL:ON DELAY 100mS TO 500mS,OFF DELAY 1mS
* OVER POWER PROTECTION:110~150% MAX
* OVER VOLTAGE PROTECTION: +12V→12.8~13.9V
* SHORT CIRCUIT PROTECTION: +12V
* SAFETY:TO MEET UL, CUL, TUV, CCC
* FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL
* MEET IEC-1000-3-2 CLASS D (ACTIVE PFC)

* THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
