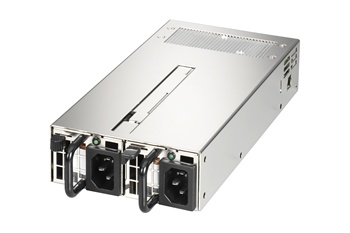

M1R2-5400V0H(400W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Micro Redundant |
| 製品説明 |
製品仕様
| wattage | 400W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 295x106x41.3 |
| dimension_inch | 11.61x4.17x1.63 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：7A (RMS) FOR 115 VAC / 3A (RMS) FOR 230 VAC INRUSH CURRENT：15A MAX. FOR 115 VAC PER MODULE / 30A MAX. FOR 230 VAC PER MODULE(at 25 degrees ambient cold start for each power unit) PFC: Up to the target of 95% @115V, full load |
| dc_output |
* TOTAL POWER: 400W (MAX) |
| features | * TEMPERATURE RANGE：OPERATING 0℃～50℃, STORAGE -20℃~80℃ * HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT 12V MUST BE MAINTAIN 11mS IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE * THE MAXIMUM POWER SUPPLY SYSTEM EFFICIENCY SHALL BE 88%, MEASURED AT NOMINAL INPUT VOLTAGE 230V AND FULL LOADING * LEAKAGE CURRENT: 3.5mA. MAX. AT NOMINAL VOLTAGE 240 VAC AND 60Hz * REMOTE ON/OFF CONTROL * POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS * OVER POWER PROTECTION：110～150% MAX * OVER VOLTAGE PROTECTION: +5V→5.7~6.5V, +3.3V→3.7~4.1V, +12V→12.8~13.9V * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB * OVER CURRENT PROTECTION: +12V:110~150% * SAFETY: MEET UL&CUL, TUV, CCC * WARNING METHOD: AUDIO ALARM(BUZZER SOUND, RESETABLE), FALUT LED, TTL * THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/M1R2GMA00.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/M1R-V%20and%20M1R2-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/M1R-V%20and%20M1R2-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/M1R2-V%20&%20M1R2-G%20CCC.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/M1R2VMA00.pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/BSMI/M1R-V%20and%20M1R2-V%20BSMI.pdf CE:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/M1R2-5400V0H%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/M1R2-5400V0H%20FCC.pdf |
