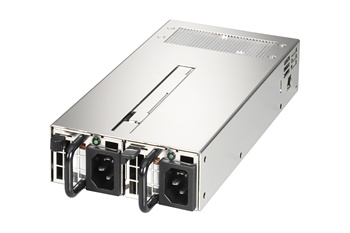

M1Y2-5300G2H(300W)

製品種別 電源 (Zippy)
電源の種類 Micro Redundant
製品説明

製品仕様

wattage 300W
solution Server ,Workstation ,Storage System ,IPC
dimension_mm 275x106x41.3
dimension_inch 10.83x4.17x1.63
input_spec VOLTAGE： 90～264VAC FULL RANGEFREQUENCY： 47～63HZINPUT CURRENT：5A (RMS) FOR 115 VAC / 2.5A (RMS) FOR 230 VACINRUSH CURRENT：15A MAX. FOR 115 VAC PER MODULE / 30A MAX. FOR 230 VAC PER MODULE
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.518±5%±1%50mV+12V224±5%±1% 120mV +3.3V0.518± 5%±1%50mV-12V00.3±10%± 1%120mV+5VSB03±5%±1%50mV
* +5V AND +3.3V Max. POWER: 120W
* TOTAL POWER: 300W (MAX)

features * TEMPERATURE RANGE：OPERATING 0℃～50℃, STORAGE -20℃~80℃
* HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT 12V MUST BE MAINTAIN 15MSEC IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE
* THE MAXMUM POWER SUPPLY SYSTEM EFFICIENCY SHALL BE MORE THAN 86%, MEASURED AT NOMINALINPUT VOLTAGE 115V 90% LOAD OR 230V FULL LOAD
* LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 240VAC
* REMOTE ON/OFF CONTROL
* POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1Ms
* OVER POWER PROTECTION：110～180% MAX
* OVER VOLTAGE PROTECTION: +5V→5.7~6.5V, +3.3V→3.7~4.3V, +12V→13.3~15V
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB
* OVER CURRENT PROTECTION: +12V--110~180%
* SAFETY: MEET UL&CUL, TUV, CCC
* WARNING METHOD: AUDIO ALARM(BUZZER SOUND, RESETABLE), FALUT LED, TTL

* THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1Y2-5300G2H(RoHS).pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/M1Y-G%20&%20M1Y2-G%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/M1Y-G%20&%20M1Y2-G%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/M1Y2-V%20&%20-G%20&%20-K%20CCC.pdf CE (Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/M1Y2-5300G2H%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/M1Y2-5300G2H%20FCC.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/M1Y2GMA00.pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/BSMI/M1Y-G%20&%20M1Y2-G%20BSMI.pdf MTBF(SR-332 Issue2):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1Y2-5300G2H%20MTBF%20T25(SR-332%20Issue2).pdf MTBF(RoHS)(40℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1Y2-5300G2H(RoHS)(40%e2%84%83).pdf
