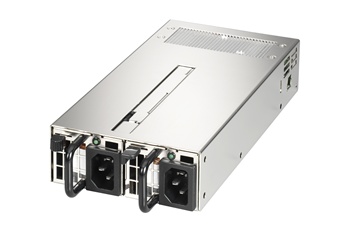

M1Y2-5220V2H(220W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Micro Redundant |
| 製品説明 |
製品仕様
| wattage | 220W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 275x106x41.3 |
| dimension_inch | 10.83x4.17x1.63 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：3.5A (RMS) FOR 115 VAC 1.5A (RMS) FOR 230 VAC INRUSH CURRENT：15A MAX. FOR 115 VAC PER MODULE 30A MAX. FOR 230 VAC PER MODULE |
| dc_output |
* TOTAL POWER:220W (MAX) |
| features | * TEMPERATURE RANGE：OPERATING 0℃～50℃, STORAGE -20℃~80℃ * HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT 12V MUST BE MAINTAIN 15MSEC IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE * EFFICIENCY: THE MAXMUM POWER SUPPLY SYSTEM EFFICIENCY SHALL BE ? 85%, MEASURED AT NOMINAL INPUT VOLTAGE 115 V OR 230 V AND FULL LOADING. * LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 240VAC * REMOTE ON/OFF CONTROL * POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1Ms * OVER POWER PROTECTION：A MODULE OVER POWER PROTECTION POINT IS 110%~200%; 1+1 MODULE OVER POWER PROTECTION POINT IS 220%~400%. * OVER VOLTAGE PROTECTION: +5V→5.7~6.5V, +3.3V→3.7~4.3V, +12V→13.3~15V * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB * OVER CURRENT PROTECTION * SAFETY: TO MEET UL&CUL, TUV, CCC * WARNING METHOD: AUDIO ALARM(BUZZER SOUND, RESETABLE), FALUT LED, TTL * THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
