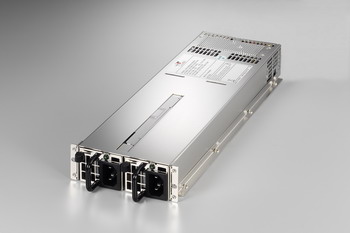

M1S2-5600G2H(600W)

製品種別 電源 (Zippy)
電源の種類 Micro Redundant
製品説明

製品仕様

wattage 600W
solution Server ,Workstation ,Storage System
dimension_mm 355x106x41.3
dimension_inch 13.98x4.17x1.63
input_spec VOLTAGE： 100～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：4.5A（RMS）FOR HIGH RANGE INPUT VOLTAGE 8.5A（RMS）FOR LOW RANGE INPUT VOLTAGE INRUSH CURRENT：35A MAX. FOR 115 VAC PER MODULE 65A MAX. FOR 230 VAC PER MODULE
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.525±5%±1%50mV+12V250±5%±1% 120mV -12V00.8±10%±1%120mV+3.3V0.525±5%±1%50mV+5VSB0.13.5±5%±1%50mV
features * TEMPERATURE RANGE：OPERATING 0℃～40℃，STORAGE -20℃～80℃
* HOLD UP TIME：16mS MIN. AT 75% OF MAXIMUM LOAD AND OVER 100~240VAC INPUT
* EFFICIENCY：The minimum power supply efficiency shall be 86% , measured at nominal input voltage 230 V and full loading
* POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1Ms
* OVER POWER PROTECTION：110～150% MAX
* OVER VOLTAGE PROTECTION：+5V→5.9V～6.5V，+3.3V→3.9V～4.3V ，+12V→13.5V～14.3V
* OVER CURRENT PROTECTION: +3.3V→110%~150%, +5V→110%~150%, +12V→110%~150%
* SHORT CIRCUIT: +12V, -12V, +3.3V, +5V, +5VSB
* EMI : FCC CLASS A , CISPR 22 CLASS A
* SAFETY：UL 60950-1, CSA 22.2 NO.60950-1-03 1ST Edition , TUV IEC60950-1, CCC
* FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL
* MEET IEC-1000-3-2 CLASS D (ACTIVE PFC)
* HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION
* COOLING: ONE 40mm DC FANS (MODULE)
* AC INLET IN EACH MODULE


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf CE (Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/M1S2-5600G2H%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/M1S2-5600G2H%20FCC.pdf
