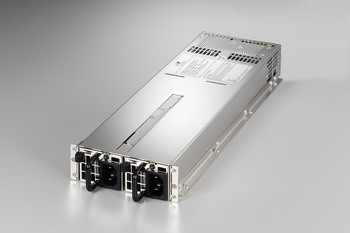

R1U-2200V(200W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Micro Redundant |
| 製品説明 |
製品仕様
| wattage | 200W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC ,Communication ,Networking |
| dimension_mm | 223x50.5x40 |
| dimension_inch | 87.8x19.88x15.75 |
| input_spec | VOLTAGE： 100～240 VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：3A/1.5A AT ANY LOW/HIGH RANGE INPUT VOLTAGE INRUSH CURRENT：35A MAX. FOR 115 VAC PER MODULE 70A MAX. FOR 230 VAC PER MODULE |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～50℃，STORAGE -20℃～80℃ * HOLD UP TIME：16mS MIN. AT FULL LOAD & 115 VAC INPUT VOLTAGE * DIELECTRIC WITHSTAND：INPUT/OUTPUT 1500 VAC FOR 60 Seconds (Primary to FG) * EFFICIENCY：TYPICAL 78%(+/-2%) AT FULL LOAD 230VAC * POWER GOOD SIGNAL：ON DELAY 100mS TO 600mS * OVER POWER PROTECTION：110～190% MAX * OVER VOLTAGE PROTECTION * SHORT CIRCUIT PROTECTION * SAFETY：TO MEET UL, CUL, TUV, CCC * MEET IEC61000-3-2 CLASS D (ACTIVE PFC) * THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
