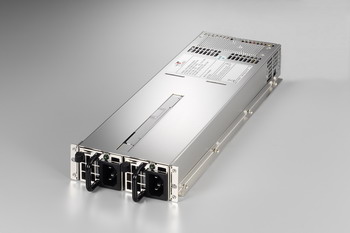

R1U2-5200V4H(200W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Micro Redundant |
| 製品説明 |
製品仕様
| wattage | 200W |
|---|---|
| solution | Server ,Workstation ,Storage System |
| dimension_mm | 260x106x41.8 |
| dimension_inch | 10.24x4.17x1.65 |
| input_spec | VOLTAGE： 100～240 VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：3A/1.5A AT ANY LOW/HIGH RANGE INPUT VOLTAGE INRUSH CURRENT：35/70 Amps @ 115/230 VAC (at 25 degrees ambient cold start for each power unit) PFC can reach the target of 95% @115VAC, 90@230VAC, Full load(one unit power supply) |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～50℃，STORAGE -20℃～80℃ * HOLD UP TIME：20mS MIN. AT FULL LOAD & 115 VAC INPUT VOLTAGE * DIELECTRIC WITHSTAND：INPUT/OUTPUT 1500 VAC FOR 1 MINUTE * EFFICIENCY：TYPICAL 78%(+/-2%) AT FULL LOAD 230VAC * POWER GOOD SIGNAL：ON DELAY 100mS TO 600mS * OVER POWER PROTECTION：110～190% MAX * OVER VOLTAGE PROTECTION * SHORT CIRCUIT PROTECTION * SAFETY：TO MEET UL, CUL, TUV, CCC * MEET IEC-61000-3-2 CLASS D (ACTIVE PFC) * THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CE (Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/R1U2-5200V4H%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/R1U2-5200V4H%20FCC.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/R1U2-5220V4H%20&%20R1U2-5200V4H%20CCC.pdf |
