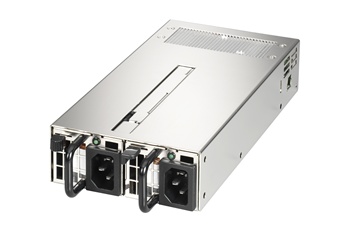

M1Y2-5220G2H(220W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Micro Redundant |
| 製品説明 |
製品仕様
| wattage | 220W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 275x106x41.3 |
| dimension_inch | 10.83x4.17x1.63 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGEFREQUENCY： 47～63HZINPUT CURRENT：3.5A (RMS) FOR 115 VAC / 1.5A (RMS) FOR 230 VACINRUSH CURRENT：15A MAX. FOR 115 VAC PER MODULE / 30A MAX. FOR 230 VAC PER MODULEPFC: Up to the target of 95% @115V& 90% @230V, full load. |
| dc_output |
* TOTAL POWER: 220W (MAX) |
| features | * TEMPERATURE RANGE：OPERATING 0℃～50℃, STORAGE -20℃~80℃ * HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT 12V MUST BE MAINTAIN 15MSEC IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE * EFFICIENCY: THE MAXMUM POWER SUPPLY SYSTEM EFFICIENCY SHALL BE MORE THAN 85%, MEASURED AT NOMINAL INPUT VOLTAGE 115 V OR 230 V AND FULL LOADING. * LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 240VAC * REMOTE ON/OFF CONTROL * OVER POWER PROTECTION：A MODULE OVER POWER PROTECTION POINT IS 110%~200%; 1+1 MODULE OVER POWER PROTECTION POINT IS 220%~400%. * OVER VOLTAGE PROTECTION * SHORT CIRCUIT PROTECTION * OVER CURRENT PROTECTION * SAFETY: TO MEET UL & CUL, TUV, CCC * WARNING METHOD: AUDIO ALARM(BUZZER SOUND, RESETABLE), FALUT LED, TTL * THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/M1Y-G%20&%20M1Y2-G%20CB.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/M1Y2-V%20&%20-G%20&%20-K%20CCC.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/M1Y2GMA00.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/M1Y2-5220G2H%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/M1Y2-5220G2H%20FCC.pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/BSMI/M1Y-G%20&%20M1Y2-G%20BSMI.pdf |
