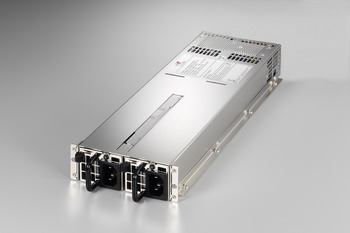

M1K2-2C00V4Q(1200W)

製品種別 電源 (Zippy)
電源の種類 Micro Redundant
製品説明

製品仕様

wattage 1200W
solution Server ,Workstation ,Storage System
dimension_mm 450x54.5x84.6
dimension_inch 17.72x2.15x3.33
input_spec VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：15A（RMS）FOR 115VAC / 8A（RMS）FOR 230VAC INRUSH CURRENT：15A MAX. FOR 115 VAC PER MODULE / 30A MAX. FOR 230 VAC PER MODULE POWER FACTOR CORRECTION: PFC can reach the target of 95% @110V,full load, following the standard Of EN 61000-3-2
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+12V1025±5%±1%120mV+12V2025±5%±1% 120mV +12V3025±5%±1%120mV+12V4025±5%±1%120mV+5VSB101±5%±1%50mV+5VSB201±5%±1%50mV+5VSB301±5%±1%50mV+5VSB401±5%±1%50mV
* +5VSB1,+5VSB2,+5VSB3,+5VSB4 Total Max：15W * Total output power not exceed:1200W (MAX)

features * TEMPERATURE RANGE：OPERATING 0℃～50℃，STORAGE -20℃～80℃
* EFFICIENCY：TYPICAL 83% AT 115V, 12V/83A 5VSB/0.1A; TYPICAL 86% AT 230V, 12V/83A 5VSB/0.1A
* OVER POWER PROTECTION
* OVER VOLTAGE PROTECTION
* SHORT CIRCUIT PROTECTION
* SAFETY：TO MEET UL, CUL, TUV, CCC


* THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1K2-2C00V4Q(RoHS).pdf
