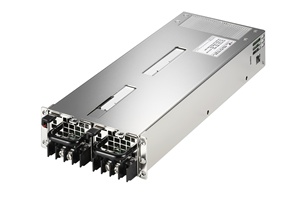

DM1Y2-5150V2H(150W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Micro Redundant DC |
| 製品説明 |
製品仕様
| wattage | 150W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC ,Communication ,Networking |
| dimension_mm | 275x106x41.3 |
| dimension_inch | 10.83x4.17x1.63 |
| input_spec | VOLTAGE：-36 ~ -72VDC FREQUENCY：DC STEADY-STATE CURRENT: ：-36 ~ -72VDC / 6~3 AMP (4 AMP AT 48VDC) INRUSH CURRENT: 40A MAX. @-48VDC INPUT (AT 25DEGREES AMBIENT COLD START FOR EACH POWER UNIT) |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～50℃, STOREAGE -20℃~80℃ * HOLD UP TIME：1.6mS MIN. AT FULL LOAD & NOMINAL INPUT VOLTAGE * EFFICIENCY: TYPICAL 80% AT -48VDC FULL LOADING * OVER POWER PROTECTION: 110~160% * OVER VOLTAGE PROTECTION * SHORT CIRCUIT PROTECTION * REMOTE ON/OFF CONTROL * REMOTE SENSING DESIGN * FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL * EMI NOISE FILTER: FCC CLASS A , CISPR 22 CLASS A * SAFETY：TO MEET UL, CUL, TUV, CCC *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/DM1Y2VMA00.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/DM1Y%20and%20DM1Y2%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/DM1Y-V%20&%20DM1Y2-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/DM1Y2-V%20CCC.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/DM1Y2-5150V2H(RoHS).pdf |
