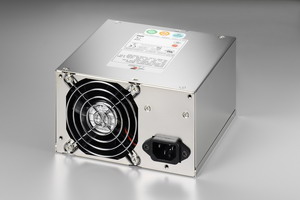

MHG2-6300P(300W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Medical IEC-60601 |
| 製品説明 |
製品仕様
| wattage | 300W |
|---|---|
| solution | Server ,Workstation ,PCs |
| dimension_mm | 140x150x86 |
| dimension_inch | 5.51x5.91x3.39 |
| input_spec | VOLTAGE: 100~240 VAC FULL RANGE FREQUENCY : 47~63 HZ INPUT CURRENT: 5A FOR 115VAC; 2.5A FOR 230VAC INRUSH CURRENT: 65A MAX. FOR 115 VAC; 125A MAX. FOR 230 VAC |
| dc_output |
|
| features | * TEMPERATURE RANGE: OPERATING -10℃~50℃, STORAGE -40℃~80℃ * HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE * EFFICIENCY: 70% TYPICAL AT 115V, FULL LOAD * POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms * OVER POWER PROTECTION: 110%~150% * OVER VOLTAGE PROTECTION: +3.3V→3.9~4.3V, +5V→5.7~6.5V, +12V→13.6~15.0V * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -5V, -12V * EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B * SAFETY: TO MEET UL, TUV, IEC 60601 * LEAKAGE CURRENT: 0.3mA. MAX. AT NOMINAL VOLTAGE * COOLING: ONE 80mm DC FAN * FAN SPEED CONTROL AND NOISE *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/MHG2%20CB%20IEC60601-1-2005.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/MHG2%20TUV%20%20EN60601-1-2006.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/MHG2-6300P%20FCC.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/MHG2%20CCC.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/MHG2MA00.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/MHG2-6300P(RoHS).pdf CE:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/MHG2-6300P%20(+Radiation).pdf |
