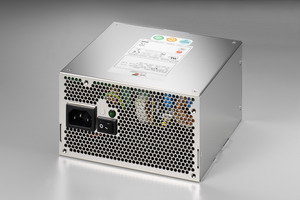

MHU2-5400V(400W)

製品種別 電源 (Zippy)
電源の種類 Medical IEC-60601
製品説明

製品仕様

wattage 400W
solution Server ,Workstation ,Storage System ,IPC ,Networking
dimension_mm 150x140x86
dimension_inch 5.91x5.51x3.39
input_spec VOLTAGE：100～240VAC FULL RANGE(WITH ±10% TOLERANCE) FREQUENCY：47～63HZ INPUT CURRENT：6A (RMS) FOR 115 VAC 3A (RMS) FOR 230 VAC INRUSH CURRENT：20A MAX. FOR 115 VAC 40A MAX. FOR 230 VAC
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.518±5%±1%50mV+12V232±5%±1% 120mV -12V00.5±5%±1%120mV+3.3V0.518±5%±1%50mV+5VSB0.12±5%±1%50mV
+5V AND +3.3V TOTAL MAX.:30A TOTAL POWER: 400W(MAX)

features * TEMPERATURE RANGE：OPERATING 0℃～40℃
* HOLD UP TIME：16mS MINIMUM AT 115V LOAD
* EFFICIENCY：80-85% TYPICAL，AT 25℃ FULL LOAD 115VAC
* POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1Ms
* OVER POWER PROTECTION: 120～160% MAX
* OVER VOLTAGE PROTECTION: +5V→5.6V～6.5V, +3.3V→3.6V～4.3V, +12V→13.2V～15V
* SHORT CIRCUIT PROTECTION: +5V
+12V
-12V
+3.3V
* RESTART AFTER PRETECTION
* EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
* SAFETY: TO MEET UL60601, TUV EN-60601
* LEAKAGE CURRENT: 0.3mA. MAX. AT NOMINAL VOLTAGE 264VAC
* REMOTE ON/OFF CONTROL: THE POWER SUPPLY SHALL ACCEPT A LOGIC OPEN COLLECTOR LEVEL WHICH WILL DISABLE/ENABLE ALL THE OUTPUT VOLTAGE (EXCLUDE +5V STAND BY). AS LOGIC LEVEL IS LOW，OUTPUTS VOLTAGE WERE ENABLE，AS LOGIC LEVEL IS HIGH，OUTPUTS VOLTAGE WERE DISABLE.


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/MHU2MA00.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/MHU2%20&%20MPSM-V%20CB.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/MHU2-5400V%20FCC.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/MHU2-V%20&%20MPSM-V%20TUV.pdf CE (Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/MHU2-5400V%20(Radiation).pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/MHU2-5400V(RoHS).pdf MTBF(RoHS)(40℃)(NO FAN):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/MHU2-5400V(RoHS)(40%e2%84%83)(NO%20FAN).pdf MTBF(RoHS)(40℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/MHU2-5400V(RoHS)(40%e2%84%83).pdf MTBF(RoHS)(NO FAN):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/MHU2-5400V(RoHS)(NO%20FAN).pdf
