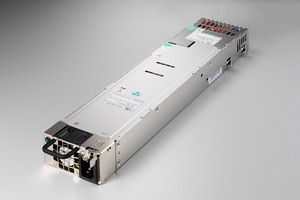

GIN1-5800V4D(800W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Easy Swap |
| 製品説明 |
製品仕様
| wattage | 800W |
|---|---|
| solution | Server ,Workstation ,Storage System ,Communication ,Networking |
| dimension_mm | 397x79x40 |
| dimension_inch | 15.63x3.11x1.57 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：6A（RMS）FOR 230VAC 12A（RMS）FOR 115VAC INRUSH CURRENT：60A MAX. FOR 115 VAC PER MODULE 80A MAX. FOR 230 VAC PER MODULE |
| dc_output |
* TOTAL OUTPUT POWER OF V1 AND V2 NOT EXCEED 800W * THE OUTPUT POWER OF 5V &3.3V NOT EXCEED 170W |
| features | * TEMPERATURE RANGE：OPERATING 0℃～40℃，STORAGE -20℃～80℃ * HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT 5V MUST BE MAINTAIN 16mSEC IN REGULATON LIMIT AT NORMAL INPUT VOLTAGE. * DIELECTRIC WITHSTAND：INPUT/OUTPUT 1500 VAC FOR 1 MINUTE INPUT TO FRAME GROUND 1500 VAC FOR 1 MINUTE * EFFICIENCY：TYPICAL >80% AT 25℃115V, 20%~100% MAX LOAD * POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1Ms * OVER POWER PROTECTION：110～160% MAX * OVER VOLTAGE PROTECTION： +12V→13V~15V, +5V→5.9V~6.7V, +3.3V→3.9V~4.3V * SHORT CIRCUIT PROTECTION: +5V, +12V, -12V, +3.3V, AUTO-RECOVERED: +5VSB * RESTART AFTER PROTECTOIN: AFTER THE PROTECTION MODE(OPP/OVP) OR SHORT CIRCUIT IS REMOVED AND A POWER ON/OFF CYCLE IS INITIATED, THE POWER SUPPLY WILL RESTART. IF THE PSU IS USING AC POWER SWITCH TO CONTROL ON/OFF, IT HAS TO BE SWITCHED OFF AT LEAST FOR 5 SECONDS TO RESTART THE UNIT. * SAFETY：TO MEET UL, CUL, TUV, CCC *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/GINVMA00.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/GIN1-5800V4D(RoHS).pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/GIN-3800V,%20R2G-V,%20R3G-V,%20GIN1%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/GIN-3800V,%20R2G-V,R3G-V,GIN1,%20R2K%20TUV.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/GIN1VMA00.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/GIN-3800V,%20R2G-V,%20GIN1,%20R2K%20CCC.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/GIN1-5800V4D%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/GIN1-5800V4D%20FCC.pdf |
