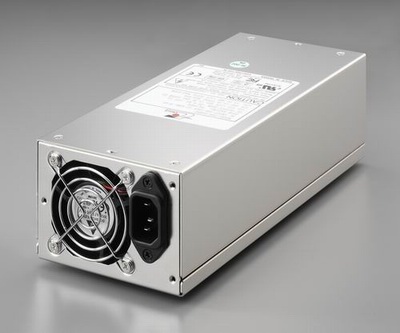

P2G-5650V(650W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 2U Single |
| 製品説明 |
製品仕様
| wattage | 650W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 240x100x70 |
| dimension_inch | 9.45x3.94x2.76 |
| input_spec | VOLTAGE: 90 ~ 264 VAC FULL RANGE FREQUENCY: 47 ~ 63 HZ INPUT CURRENT: 10.0A ( RMS ) FOR 115VAC, 5.0A ( RMS ) FOR 230 VAC INRUSH CURRENT: 25A MAX. FOR 115 VAC, 50A MAX. FOR 230 VAC POWER FACTOR CORRECTION: PFC CAN REACH THE TARGET OF 95% AT 115/230VAC, FULL LOAD |
| dc_output |
|
| features | ‧TEMPERATURE RANGE: OPERATING 0℃ --- 50℃, STORAGE –20℃ --- 80℃ ‧HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE ‧EFFICIENCY: 80~84% TYPICAL AT 115V, FULL LOAD ‧POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms ‧OVER POWER PROTECTION ‧OVER VOLTAGE PROTECTION ‧SHORT CIRCUIT PROTECTION ‧EMI: FCC CLASS B, CISPR22 CLASS B ‧SAFETY: TO MEET UL, CUL, TÜV, CCC ‧COOLING: ONE 60mm DC FAN ‧MEET IEC-1000-3-2 CLASS D *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/P2G-5650V(RoHS).pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/P2G-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/P2G-V%20TUV.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/P2G-5650V%20FCC.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/P2G-V%20CCC.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/P2GVMA00.pdf CE:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/P2G-5650V%20(+Radiation).pdf |
