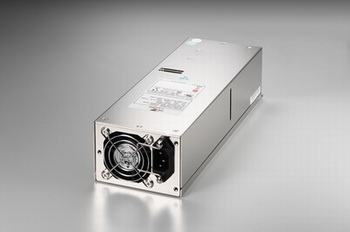

P2M-5600V(600W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 2U Single |
| 製品説明 |
製品仕様
| wattage | 600W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 280x100x70 |
| dimension_inch | 11.02x3.94x2.76 |
| input_spec | VOLTAGE: 100 ~ 240 VAC FULL RANGE(WITH ±10% TOLERANCE) FREQUENCY: 47 ~ 63 HZ INPUT CURRENT: 9.0 A ( RMS ) FOR 115VAC 4.0 A ( RMS ) FOR 230VAC INRUSH CURRENT: 35A MAX. FOR 115 VAC 70A MAX. FOR 230 VAC PFC: UP TO THE TARGET OF 95% @230V, FULL LOAD |
| dc_output |
|
| features | * TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃, STORAGE -20℃ ~ 80℃ * HUMIDITY:OPERATING:20%-80%, NON-OPERATING:10%-90% * EFFICIENCY: TYPICAL 80-84% AT 115V FULL LOAD * OVER POWER PROTECTOIN: 110~160% * OVER VOLTAGE PROTECTION: +3.3V→3.6~4.3V, +5V→5.6~6.5V, +12V→13.2~15V * OVER CURRENT PROTECTION: +3.3V→27.5~37.5V, +5V→33~45V, +12V→50.6~73.6V * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB * SAFETY: TO MEET UL, CSA, TUV * REMOTE ON/OFF CONTROL * COOLING: ONE 60 mm DC FAN * LEAKAGE CURRENT: 3.5mA. MAX. AT NOMINAL VOLTAGE 264VAC *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/P2MVMA00.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/P2P-5%20&%20%20P2W-5%20&%20%20P2M-V%20CB.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/P2M-5600V(RoHS).pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/P2W%20&%20P2P-5%20%20&%20P2M-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/P2W%20&%20P2P%20&%20P2M-V%20CCC.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/P2M-5600V%20(+Radiation).pdf |
