製品情報

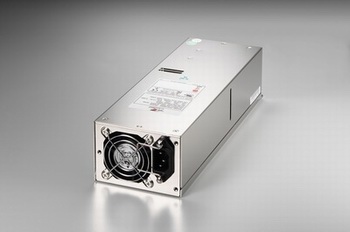

P2M-5700V(700W)

製品種別 電源 (Zippy)
電源の種類 2U Single
製品説明

製品仕様

wattage 700W
solution Server ,Workstation ,Storage System ,IPC
dimension_mm 280x100x70
dimension_inch 11.02x3.94x2.76
input_spec VOLTAGE: 100 ~ 240 VAC FULL RANGE(WITH ±10% TOLERANCE) FREQUENCY : 47 ~ 63 HZ INPUT CURRENT: 11.0 A ( RMS ) FOR 115VAC 5.0 A ( RMS ) FOR 230VAC INRUSH CURRENT: 35A MAX. FOR 115 VAC 70A MAX. FOR 230 VAC PFC: UP TO THE TARGET OF 95% @230V, FULL LOAD
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.525±5%±1%60mV+12V250±5%±1% 120mV -12V00.8±10%±1%120mV+3.3V0.525±5%±1%60mV+5VSB03±5%±1%60mV


features * TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃, STORAGE -20℃ ~ 80℃
* HUMIDITY:OPERATING:20%-80%, NON-OPERATING:10%-90%
* EFFICIENCY: TYPICAL 80-84% AT 115V FULL LOAD
* OVER POWER PROTECTOIN: 110~160%
* OVER VOLTAGE PROTECTION: +3.3V→3.6~4.3V, +5V→5.6~6.5V, +12V→13.2~15V
* OVER CURRENT PROTECTION: +3.3V→27.5~37.5V, +5V→33~45V, +12V→55~75V
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB
* SAFETY: TO MEET UL, CSA, TUV, CCC
* REMOTE ON/OFF CONTROL
* COOLING: ONE 60 mm DC FAN
* LEAKAGE CURRENT: 3.5mA. MAX. AT NOMINAL VOLTAGE 264VAC

*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/P2MVMA00.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/P2P-5%20&%20%20P2W-5%20&%20%20P2M-V%20CB.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/P2M-5700V(RoHS).pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/P2W%20&%20P2P-5%20%20&%20P2M-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/P2W%20&%20P2P%20&%20P2M-V%20CCC.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/P2M-5700V%20(+Radiation).pdf
