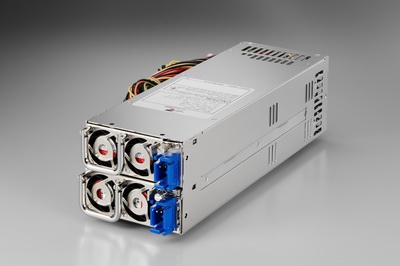

DM2W-6460F(460W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 2U Redundant DC |
| 製品説明 |
製品仕様
| wattage | 460W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC ,Communication |
| dimension_mm | 300x101x84 |
| dimension_inch | 11.81x3.98x3.31 |
| input_spec | VOLTAGE: DC -36 V ~ -72 V INPUT CURRENT: 15 A ( RMS ) FOR – 48 VDC INRUSH CURRENT : 30A @48VDC (AT 25 DEGREES AMBIENT COLD START) |
| dc_output |
|
| features | ‧TEMPERATURE RANGE: OPERATING 0℃ --- 40℃,STORAGE -20℃ --- 80℃ ‧HOLD UP TIME: 1.6 ms MINIMUM AT FULL LOAD & -48VDC INPUT VOLTAGE ‧EFFICIENCY: 71% TYPICAL AT DC-48 INPUT, FULL LOAD ‧POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms ‧OVER POWER PROTECTION ‧OVER VOLTAGE PROTECTION ‧OVER CURRENT PROTECTION ‧SHORT CIRCUIT PROTECTION ‧EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A ‧COOLING: TWO 38x38x28mm DC FANS (PER MODULE) ‧DC INLET IN EACH MODULE *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/DM1WX%20&%20DMXW%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/DM1WX%20TUV.pdf MTBF:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/DM2W-6460F.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/DM1WX%20&%20DMXW%20CCC.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/DM2WMA00.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/DM2WMA01.pdf MANUAL:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MANUAL/DMyWx%20Series.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/DM2W-6460F(RoHS).pdf |
