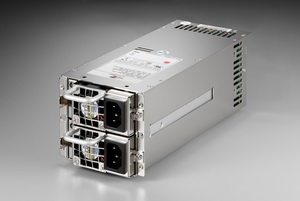

MIN2-6251P(250W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 2U Redundant |
| 製品説明 |
製品仕様
| wattage | 250W |
|---|---|
| solution | Server ,Workstation ,Storage System ,PCs |
| dimension_mm | 230x82x85 |
| dimension_inch | 9.06x3.23x3.35 |
| input_spec | Full range：100～240 VAC (With ± 10% tolerance) Frequency：The input frequency range will be 50Hz/60Hz(±3Hz) Steady-state current：6/3 amps maximum at any low/high range input voltage. Inrush current：60/90 amps @115/230 VAC (at 25 degrees ambient cold start for each power unit) |
| dc_output |
|
| features | ‧TEMPERATURE RANGE: OPERATING 0℃ --- 40℃ ‧POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms ‧OVER LOAD PROTECTION: 110% ~ 160% ‧Over voltage protection: +5V → 5.7V ~ 6.6V, +3.3V → 3.9V ~ 4.5V, +12V → 13V ~ 15V ‧Short circuit: A short circuit placed on any DC output to DC return shall cause no damage. ‧SAFETY: MEET UL 60950, TUV EN-60950-1, CB IEC 60950-1, CCC GB4943-1995, GB9254-1998, GB17625.1-1998. *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/MIN,MR3,R3U,R2T,R1M,MIN2%20CB.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/MIN2-6251P%20%20FCC.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/MIN,MR3,R3U,R2T,R1M,MIN2%20TUV.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/MIN2-6251P(RoHS).pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/MIN,MR3,R3U,R1M,MIN2,R2T%20CCC.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/MIN2MA00.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/MIN2-6251P%20(+Radiation).pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/BSMI/MIN-6251P,R1M-6251P,MIN2-6251P%20BSMI.pdf |
