製品情報

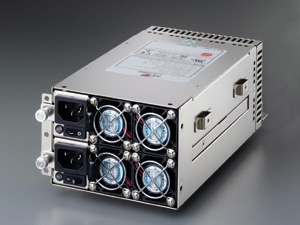

R2A-5350P(350W)

製品種別 電源 (Zippy)
電源の種類 2U Redundant
製品説明

製品仕様

wattage 350W
solution Server ,Workstation ,Storage System ,IPC
dimension_mm 220x120x85
dimension_inch 8.66x4.72x3.35
input_spec Voltage: full range 90~264VAC (with+-10% tolerance) Frequency: 47~63HZ Inrush current: 50/80 amps @110/220 VAC (at 25 degrees ambient cold start)
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V3.035±5%±1%50mV+12V0.58±7%±1% 120mV -12V00.8±10%±1%150mV+3.3V135±5%±1%50mV+5VSB02±5%±1%60mV


features * TEMPERATURE RANGE: OPERATING 0~40 degrees centigrade, STORAGE –20~80 degrees centigrade.
* HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & 90 VAC INPUT VOLTAGE
* EFFICIENCY: 63% AT 115V, full load
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
* OVER POWER PROTECTION
* OVER VOLTAGE PROTECTION
* OVER CURRENT PROTECTION
* SHORT CIRCUIT PROTECTION
* EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A
* COOLING: TWO 40 mm DC FANS PER MODULE


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/R2A-5350P%20CB.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/R2A-5350P%20FCC.pdf MTBF:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R2A-5350P.pdf MANUAL:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MANUAL/R2A%20Series.pdf
