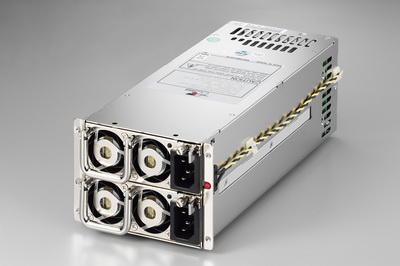

M1Z2-5500V3V(500W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 2U Redundant |
| 製品説明 |
製品仕様
| wattage | 500W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 265x101x84 |
| dimension_inch | 10.43x3.98x3.31 |
| input_spec | VOLTAGE: 90 ~ 264 VAC FULL RANGE. FREQUENCY: 47 ~ 63 Hz. INPUT CURRENT: 4A (RMS) FOR 230 VAC 8A (RMS) FOR 115 VAC INRUSH CURRENT: 35A MAX. FOR 115 VAC PER MODULE 40A MAX. FOR 230 VAC PER MODULE POWER FACTOR CORRECTION: PFC CAN REACH THE TARGET OF 95% AT 230V, FULL LOAD |
| dc_output |
|
| features | ‧TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃, STORAGE –20℃ ~ 80℃ ‧HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE ‧EFFICIENCY: 80% TYPICAL AT 115VAC, FULL LOAD ‧POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms ‧OVER POWER PROTECTION ‧OVER VOLTAGE PROTECTION ‧OVER CURRENT PROTECTION ‧SHORT CIRCUIT PROTECTION ‧SAFETY: TO MEET UL, TUV, CB ‧EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A ‧3.3V REMOTE SENSING *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/M1Z2VMA00.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/M1Z2-5500V3V%20FCC.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1Z2-5500V3V(RoHS).pdf MTBF(ROHS)(50℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1Z2-5500V3V(RoHS)(50%e2%84%83).pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/M1ZX-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/M1ZX-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/M1ZX-V%20CCC.pdf MANUAL:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MANUAL/MyWx,MyGx,MyTx,MyZx,DmyWx,S1M.pdf MANUAL:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MANUAL/MyZx%20Series2008.doc MTBF(RoHS)(40℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1Z2-5500V3V(RoHS)(40%e2%84%83).pdf MTBF(RoHS)(60℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1Z2-5500V3V(RoHS)(60%e2%84%83).pdf MTBF(RoHS)(65℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1Z2-5500V3V(RoHS)(65%e2%84%83).pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/M1Z2-5500V3V%20(+Radiation).pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/BSMI/M1Z-V%20&%20%20M1Z2-V3V%20BSMI.pdf |
