製品情報

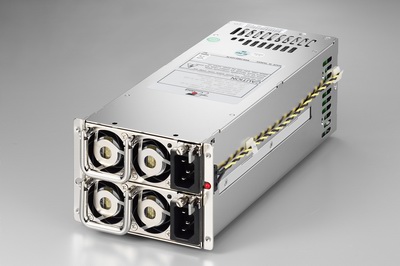

M1Z2-6400P3V(400W)

製品種別 電源 (Zippy)
電源の種類 2U Redundant
製品説明

製品仕様

wattage 400W
solution Server ,Workstation ,Storage System
dimension_mm 265x101x84
dimension_inch 10.43x3.98x3.31
input_spec Input:VOLTAGE: 90 ~ 264 VAC FULL RANGE. FREQUENCY: 47 ~ 63 Hz. INPUT CURRENT: 4A (RMS) FOR 230 VAC 8A (RMS) FOR 115 VAC INRUSH CURRENT: 60A MAX. FOR 115 VAC PER MODULE 100A MAX. FOR 230 VAC PER MODULE POWER FACTOR CORRECTION: PFC CAN REACH THE TARGET OF 95% AT 230V, FULL LOAD
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V325±5%±1%70mV-5V0.010.5±10%±1% 120mV +12V226±6%±1%120mV-12V0.011+5/-10%±1%120mV+3.3V124±5%±1%70mV+5VSB0.12+5/-6%±1%70mV


features ‧TEMPERATURE RANGE: OPERATING 0℃ --- 40℃, STORAGE –20℃ --- 80℃
‧HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
‧EFFICIENCY: 65% TYPICAL AT 115VAC, FULL LOAD
‧POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
‧OVER POWER PROTECTION
‧OVER VOLTAGE PROTECTION: POWER MODULE: +5V→ 5.7V~6.5V, +3.3V→ 3.9V~4.7V, +12V→ 13.3V~14.3V; TOTAL POWER: +5V→6.5V~8.5V, +3.3V→ 4.7V~6.7V, +12V→ 14.3V~17.3V
‧OVER CURRENT PROTECTION: THE POWER SUPPLY SHALL LATCH OFF IF THE +5V,+12V&+3.3V OUTPUT CURRENTS ARE OVER IT'S LIMITATION. THE LIMITED CURRENT IS OVER 110~180% FOR EACH OUTPUT CURRENT AT EACH POWER MODULE.
‧SHORT CIRCUIT PROTECTION
‧SAFETY: TO MEET UL, TUV, CB
‧EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A
‧WARNING METHOD: AUDIO ALARM, TTL


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf MANUAL:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MANUAL/MyWx,MyGx,MyTx,MyZx,DmyWx,S1M.pdf
