製品情報

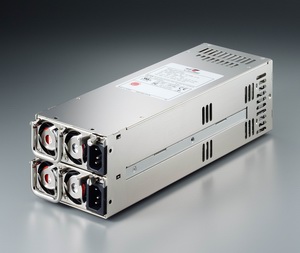

M1W2-5810V3V(810W)

製品種別 電源 (Zippy)
電源の種類 2U Redundant
製品説明

製品仕様

wattage 810W
solution Server ,Workstation ,Storage System
dimension_mm 300x101.2x84
dimension_inch 11.81x3.98x3.31
input_spec VOLTAGE: 90~264VAC FULL RANGE FREQUENCY: 47~63HZ INPUT CURRENT:12A (RMS) FOR 115 VAC 6A (RMS) FOR 230 VAC INRUSH CURRENT:15A MAX. FOR 115 VAC 30A MAX. FOR 230 VAC POWER FACTOR CORRECTION: PFC CAN REACH THE TARGET OF 95% @110V, FULL LOAD, FOLLOWING THE STANDARD OF EN 61000-3-2
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V1.024±5%±1%50mV+12V266±5%±1% 120mV -12V01.5±5%±1%120mV+3.3V124±5%±1%50mV+5VSB0.14±5%±1%50mV


features * TEMPERATURE RANGE:OPERATING 0℃~50℃,STORAGE TEMPERATURE:-20℃~80℃
* HOLD UP TIME:WHEN POWER SHUTDOWN DC OUTPUT 5V MUST BE MAINTAIN 16mSEC IN REGULATION LIMIT AT 90 VAC INPUT VOLTAGE
* DIELECTRIC WITHSTAND:INPUT/OUTPUT 1800 VAC FOR 1 SECOND INPUT TO FRAME GROUND 1800 VAC FOR 1 SECOND
* EFFICIENCY:84% TYPICAL AT 115V, 86% TYPICAL AT 230V
* POWER GOOD SIGNAL:ON DELAY 100mS TO 500mS,OFF DELAY 1mS
* OVER POWER PROTECTION:110~150% MAX
* OVER VOLTAGE PROTECTION:+3.3V→3.7V~4.1V,+5V→5.7V~6.5V ,+12V→12.8 V~13.9V
* OVER CURRENT PROTECTION:110%~150%
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V
* EMI NOISE FILTER : FCC CLASS B, CISPR22 CLASS B
* SAFETY : TO MEET UL, CUL, TUV


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/M1W2VMA00.pdf MANUAL:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MANUAL/MyWx,MyGx,MyTx,MyZx,DmyWx,S1M.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/M1W-2810V,M1W2-V,M1W4-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/M1W-2810V,M1W2-V,M1W4-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/M1W-2810V,M1W2-V,M1W4-V%20CCC.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1W2-5810V3V(RoHS).pdf CE:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/M1W2-5810V3V%20(+Radiation).pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/M1W2-5810V3V%20(+Radiation).pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/BSMI/M1W-2810V,M1W2-V%20BSMI.pdf MTBF(RoHS)(40℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1W2-5810V3V(RoHS)(40%e2%84%83).pdf
