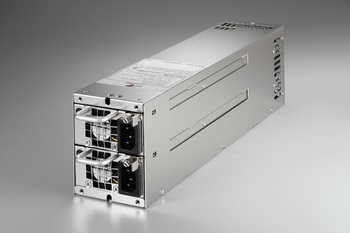

R2G-5650G2V(650W)

製品種別 電源 (Zippy)
電源の種類 2U Redundant
製品説明

製品仕様

wattage 650W
solution Server ,Workstation ,Storage System
dimension_mm 276x101x82
dimension_inch 10.87x3.98x3.23
input_spec VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：10A/5A (115/230 VAC) POWER MODULE INRUSH CURRENT：35/70 AMPS @115/230 VAC (at 25 degrees ambient cold start for each power unit) PFC: Up to the target of 95% @115V & 90% @230V, full load.
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.525±5%±1%50mV+12V2.047±5%±1% 120mV -12V0.20.8±10%±1%150mV+3.3V0.525±5%±1%50mV+5VSB0.13.5±5%±1%50mV
+5V AND +3.3V TOTAL OUTPUT MAX : 170W
TOTAL OUTPUT MAX: 600W

features * TEMPERATURE RANGE：OPERATING 0℃～40℃, OPERATING TEMPERATURE: -20℃~80℃
* EFFICIENCY：The minimum power supply system efficiency shall be 89 ±2%, measured at nominal input voltage 230 V and full loading
* OVER POWER PROTECTION：110% ~ 160%
* OVER VOLTAGE PROTECTION
* SHORT CIRCUIT PROTECTION
* OVER CURRENT PROTECTION
* EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
* SAFETY: TO MEET UL, CUL, TUV, CCC
* REMOTE ON/OFF CONTROL
* N+1 REDUNDANCY FUNCTION
* HOT-SWAPPABLE FUNCTION


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/GIN-G%20and%20R2G-G%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/GIN-G%20and%20R2G-G%20TUV.pdf
