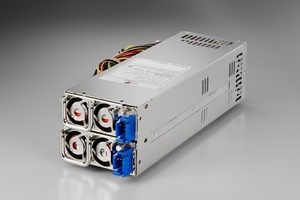

DM1L2-5700V3V(700W)

製品種別 電源 (Zippy)
電源の種類 2U Redundant DC
製品説明

製品仕様

wattage 700W
solution Server ,Workstation ,Storage System
dimension_mm 330x101.2x84
dimension_inch 12.99x3.98x3.31
input_spec VOLTAGE: -36 ~ -72 VDC, NORMAL -48VDC INPUT CURRENT:19A(RMS)FOR -48VDC INRUSH CURRENT:30A MAX.
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.532±5%±1%50mV+12V255±5%±1% 120mV -12V0.050.8±5%±1%120mV+3.3V0.536±5%±1%50mV+5VSB0.13.5±5%±1%50mV


features * TEMPERATURE RANGE:OPERATING 0℃~50℃,STORAGE -20℃~80℃
* HOLD UP TIME:1mS MIN. AT FULL LOAD
* DIELECTRIC WITHSTAND:INPUT/OUTPUT 1500 VAC FOR 1 minute INPUT TO FRAME GROUND 1500 VAC FOR 1 minute
* EFFICIENCY:80% TYPICAL,AT INPUT -48V FULL LOAD
* POWER GOOD SIGNAL:ON DELAY 100mS TO 500mS,OFF DELAY 1mS
* OVER POWER PROTECTION:110~150% MAX
* OVER VOLTAGE PROTECTION:+5V→5.7V~6.5V,+3.3V→3.9V~4.3V ,+12V→13.3V~14.3V
* SHORT CURRENT PROTECTION:+5V,+12V,+3.3V
* EMI : FCC CLASS A , CISPR 22 CLASS A
* SAFETY:TO MEET UL, CUL, TUV
* REMOTE ON / OFF CONTROL
THE UNIT SHALL ACCEPT A LOGIC OPEN COLLECTOR LEVEL WHICH WILL DISABLE/ENABLE ALL THE OUTPUT VOLTAGE (EXCLUDE +5V STAND BY).
AS LOGIC LEVEL IS LOW,OUTPUTS VOLTAGE WERE ENABLE, AS LOGIC LEVEL IS HIGH,OUTPUTS VOLTAGE WERE DISABLE.
* COOLING: TWO 38x38x28mm DC FANS
* DC INLET IN EACH MODULE


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/DM1WX,DM1LX-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/DM1WX,DM1LX-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/DM1W2,DM1L2-V%20CCC.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/DM1L2-5700V3V(RoHS).pdf
