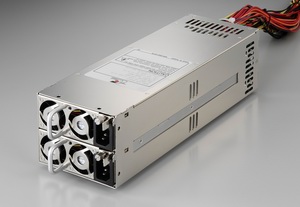

M1W2-5600P3V(600W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 2U Redundant |
| 製品説明 |
製品仕様
| wattage | 600W |
|---|---|
| solution | Server ,Workstation ,Storage System |
| dimension_mm | 300x101x84 |
| dimension_inch | 11.81x3.98x3.31 |
| input_spec | VOLTAGE: 90~264 VAC FULL RANGE FREQUENCY: 47~63Hz INPUT CURRENT: 10-5A MAX AT ANY LOW/HIGH INPUT VOLTAGE INRUSH CURRENT: 160/180A @ 115/230VAC (25℃) POWER FACTOR CORRECTION: 95% @ 110V, FULL LOAD |
| dc_output |
|
| features | * TEMPERATURE RANGE: OPERATING: 0℃ --- 40℃ STORAGE: -20℃ --- 80℃ * HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE * EFFICIENCY: 67% TYPICAL AT 115VAC FULL LOAD * POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms * OVER POWER PROTECTION * OVER VOLTAGE PROTECTION * OVER CURRENT PROTECTION * SHORT CIRCUIT PROTECTION * EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A * 3.3V / 5V REMOTE SENSING *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/R2W,%20M1WX%20600W%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/M1WX%20600W%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/R2W,%20M1WX%20600W%20CCC.pdf MTBF:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1W2-5600P3V.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/M1W2MA00.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/M1W2-5600P3V%20FCC.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1W2-5600P3V(RoHS).pdf |
