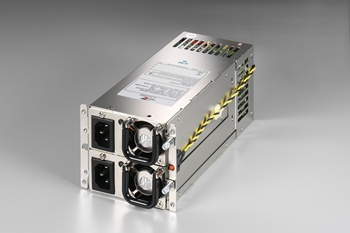

R1S2-5300V4V(300W)

製品種別 電源 (Zippy)
電源の種類 2U Redundant
製品説明

製品仕様

wattage 300W
solution Server ,Workstation ,Storage System
dimension_mm 207x85x84
dimension_inch 8.15x3.35x3.31
input_spec VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：4.5A (RMS) FOR 115 VAC 2.0A (RMS) FOR 230 VAC INRUSH CURRENT：15A MAX. FOR 115 VAC PER MODULE 30A MAX. FOR 230 VAC PER MODULE
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.520±5%±1%50mV+12V2.024±5%±1% 120mV -12V0.10.5±10%±1%120mV+3.3V0.520±5%±1%50mV+5VSB0.12.5±5%±1%50mV
WHEN CONDITIONS OF BOTH +5V/0A +3.3V/0A, MIN LOAD OF 4A AT +12V IS A MUST

features * TEMPERATURE RANGE：OPERATING 0℃～40℃, STORAGE -20℃~80℃
* HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT 5V MUST BE MAINTAIN 16MSEC IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE
* EFFICIENCY：84% TYPICAL，AT FULL LOAD 115VAC
* LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 250VAC
* POWER GOOD SIGNAL：ON DELAY 100mS TO 550mS，OFF DELAY 1Ms
* OVER POWER PROTECTION：110～160% MAX
* OVER VOLTAGE PROTECTION: +5V→5.6~6.7V, +3.3V→3.6~4.3V, +12V→13~16V
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB
* SAFETY: MEET UL60950, TUV EN-60950, CB IEC 60950
* WARNING METHOD: AUDIO ALARM(BUZZER SOUND, RESETABLE), FALUT LED, TTL


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
