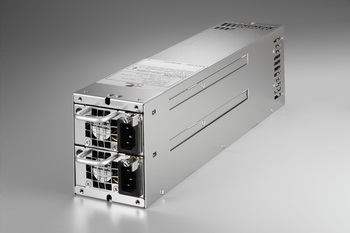

R2K-5800V(800W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 2U Redundant |
| 製品説明 |
製品仕様
| wattage | 800W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 340x101x82 |
| dimension_inch | 13.39x3.98x3.23 |
| input_spec | Input：VOLTAGE: 90 ~ 264 VAC FULL RANGE. FREQUENCY: 47 ~ 63Hz. INPUT CURRENT: 6A (RMS) FOR 230 VAC 12A (RMS) FOR 115 VAC INRUSH CURRENT: 18A MAX. FOR 115 VAC PER MODULE 36A MAX. FOR 230 VAC PER MODULE PFC CAN REACH THE TARGET OF 95% @230V, FULL LOAD |
| dc_output |
|
| features | * TEMPERATURE RANGE: OPERATING 0℃ --- 40℃,STORAGE -20℃ --- 80℃ * HOLD UP TIME: POWER SHUTDOWN DC OUTPUT 5V MUST BE MAINTAIN 16mSEC IN REGULATION LITMIT AT NORMAL INPUT VOLTAGE * EFFICIENCY: TYPICAL 85% MAX AT 115V * POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms * OVER POWER PROTECTION: 110 ~ 160% MAX, ONE UNIT * OVER VOLTAGE PROTECTION: +5V → 5.8V ~ 6.9V, +3.3V → 3.9V ~ 4.6V, +12V → 13.9V ~ 16.4V * SHORT CIRCUIT: +5V, +12V, +3.3V, -12V, AUTO-RECOVERED: +5VSB * OVER CURRENT PROTECTION: +3.3V→35.2~48A, +5V→35.2~48A, +12V→71.5~97.5A * EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B * SAFETY: TO MEET UL&CUL, TUV, CCC * FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL * HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION * N+1 BALANCE LOAD SHARING DESIGN ON 5/12/3.3V CHANNEL * REMOTE ON/OFF CONTROL * ISOLATION: BUILT-IN THE POWER MODULE * COOLING: TWO 40 mm DC FANS (ONE IN EACH MODULE) *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/R2K0MA00.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/GIN-3800V%20ADD%20%20KIN-V%20,%20R2K-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/GIN-3800V,%20R2G-V,R3G-V,GIN1,%20R2K%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/GIN-3800V,%20R2G-V,%20GIN1,%20R2K%20CCC.pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/BSMI/KIN-V%20&%20R2K-V%20BSMI.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/R2K-5800V%20(+Radiation).pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R2K-5800V(RoHS).pdf |
